Wouter Witzel Series EVS Wafer Short Valve
Wouter Witzel Series EVS Wafer Short Valve
SKU:VAL-95d198
Durable, versatile, and precise - the Wouter Witzel Series EVS Wafer Short Valve meets ISO standards for reliable performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Wouter Witzel Series EVS Wafer Short Valve
$1,899.99
Quantity: 1
Claim Your Seller Account
Wouter Witzel Series EVS Wafer Short Valve
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wouter Witzel Series EVS Wafer Short Valve is a high-performance concentric butterfly valve designed for precision and durability. With a vulcanized rubber lining and face-to-face conformance to ISO 5752 S-20, this valve ensures reliable operation in diverse applications. Featuring a flangeless wafer short body with drilled centring holes, a top flange per ISO 5211, and a range of actuation options (manual, electric, pneumatic, hydraulic), this valve offers versatility and ease of use. Available in various material options for the body, disc, stem, and liners, it provides exceptional resistance to wear and corrosion. Suitable for both isolating and regulating flow, this valve complies with ISO 5208 leakage standards for a tight shut-off.
Product Specifications

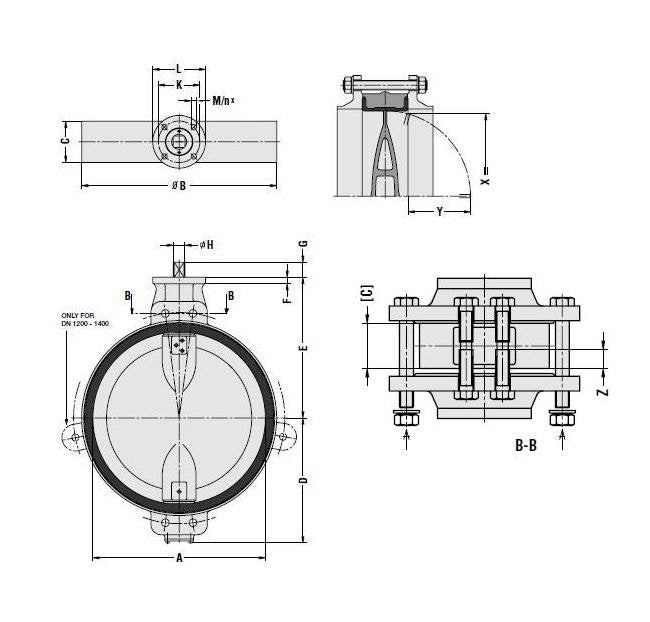

Specifications A
736 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
826 mm
Specifications C
190 mm
Specifications D
520 mm
Specifications Disc Material
Aluminum Bronze | Stainless Steel
Specifications E
585 mm
Specifications F
25 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 20 | PN 6
Specifications G
60 mm
Specifications H Diameter
60 mm
Specifications Iso 5211
F16
Specifications K
165 mm
Specifications L
210 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
21 mm
Specifications N Number Of Holes
4
Specifications Size
DN750 - 30" | 750 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
295.0 kg
Specifications X
666 mm
Specifications Y
261 mm
Specifications Z At Pn 61016
Through Bolting
