WSF Retractable Collet Chuck - Precision Machining Solution

Name: WSF Retractable Collet Chuck - Precision Machining Solution
Brand: MicroCentric Corp.
SKU: QUI-6030f1
Price: 1299.99 USD
Availability: OutOfStock

SKU:QUI-6030f1

Achieve precision machining with the WSF Retractable Collet Chuck - Ideal for completing shafts with accuracy and efficiency.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

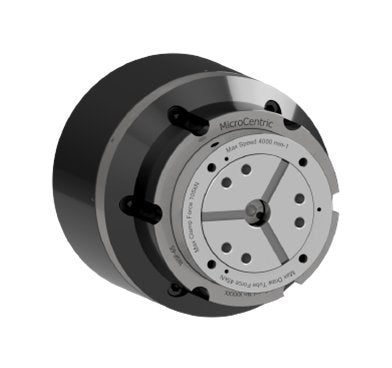

The WSF Retractable Collet Chuck offers precision machining capabilities for completing shafts between centers. Designed with a retractable collet feature, a face driver mounted inside the chuck facilitates shaft turning while ensuring secure clamping. With radial adjusting screws for precise alignment within 0.0002 inches, this chuck allows for machining the OD of the shaft with utmost accuracy. Hardened and precision ground components ensure durability and longevity, meeting the highest standards for accuracy and performance.

Product Specifications

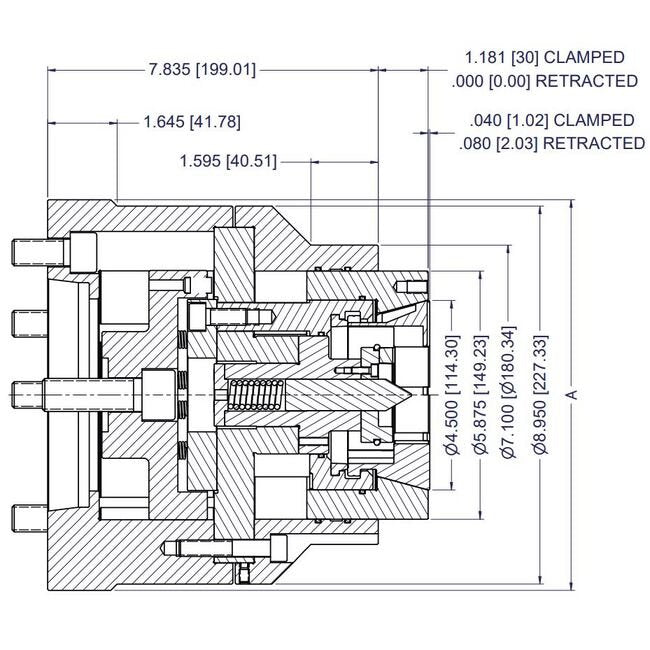

Specifications A Dimension

8.95 in | 227.33 mm

Specifications Clamping Range

+/- .020 in | 0.5 mm

Specifications Collet Model

80BZI

Specifications Linear Chuck Stroke

1.341 in | 34.06 mm

Specifications Max Clamping Diameter

3.250 in | 82.5 mm

Specifications Max Clamp Force

25,853 lbs | 115 kN

Specifications Max Speed

3,500 rpm

Specifications Min Clamping Diameter

0.500 in | 12 mm

Specifications Spindle Nose

A2-6

Specifications Weight

102.91 lb | 46.67 kg
