WSF Retractable Collet Chuck - Precision Machining Solution

Name: WSF Retractable Collet Chuck - Precision Machining Solution
Brand: MicroCentric Corp.
SKU: QUI-076b99
Price: 2199.99 USD
Availability: OutOfStock

SKU:QUI-076b99

Enhance precision machining with WSF Retractable Collet Chuck - Perfect for OD and shaft machining tasks

$2,199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

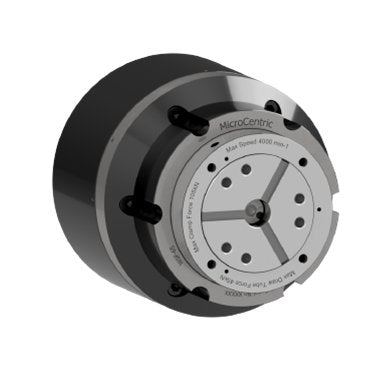

The WSF Retractable Collet Chuck is a game-changer for precision machining tasks, allowing complete shaft machining between centers with utmost accuracy. Featuring a retractable design and a face driver mount for efficient shaft turning, this chuck ensures secure clamping for OD machining while maintaining precision within .0002 inches. With radial adjusting screws for chuck alignment, hardened components, and a robust build, it guarantees exceptional accuracy and durability for long-term usage, meeting the stringent requirements of industrial and government procurement standards.

Product Specifications

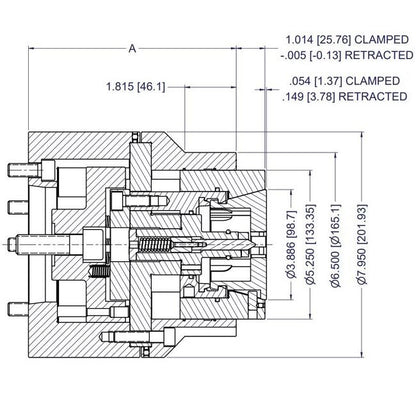

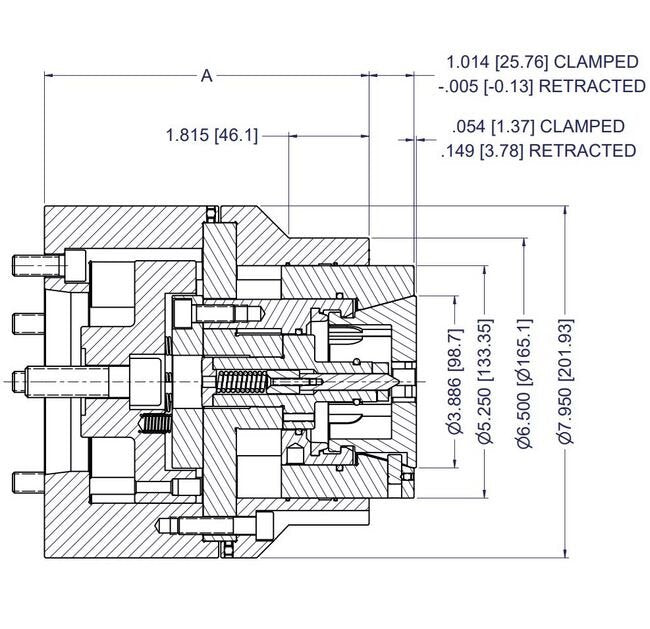

Specifications A Dimension

7.335 in | 186.31 mm

Specifications Clamping Range

+/- .020 in | 0.5 mm

Specifications Collet Model

65BZI

Specifications Linear Chuck Stroke

1.080 in | 27.43 mm

Specifications Max Clamping Diameter

2.625 in | 66 mm

Specifications Max Clamp Force

23,605 lbs | 105 kN

Specifications Max Speed

4,000 rpm

Specifications Min Clamping Diameter

0.187 in | 5 mm

Specifications Spindle Nose

A2-5

Specifications Weight

79.3 lb | 35.96 kg

WSF Retractable Collet Chuck - Precision Machining Solution
