WSN 118 Inch Steam Heat Shrink Tunnel
WSN 118 Inch Steam Heat Shrink Tunnel
SKU:PAC-126721
Achieve precise shrink labeling with the WSN 118 Inch Steam Heat Shrink Tunnel from American Film & Machinery. Ideal for various industries.
Regular price
$54,999.00
Regular price
Sale price
$54,999.00
Unit price
per
Initiate Order
WSN 118 Inch Steam Heat Shrink Tunnel
$54,999.00
Quantity: 1
Claim Your Seller Account
WSN 118 Inch Steam Heat Shrink Tunnel
$54,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

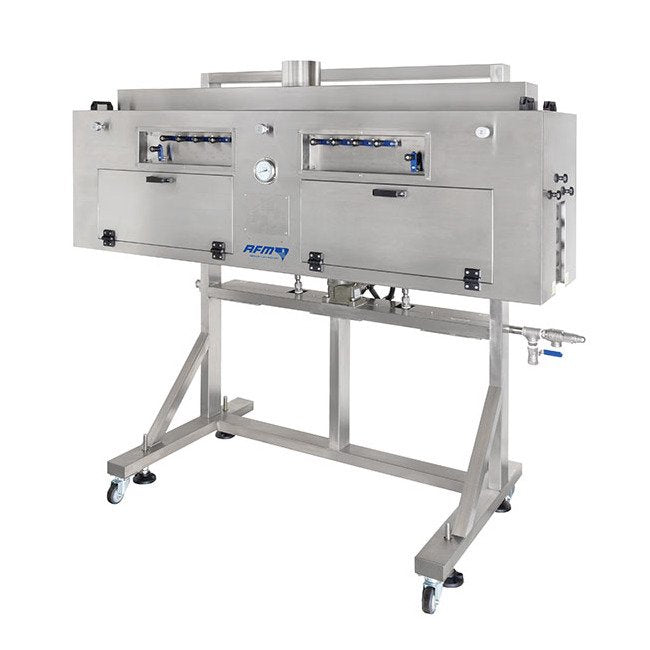

The WSN 118 Inch Steam Heat Shrink Tunnel from American Film & Machinery is a high-performance solution designed for precise shrink sleeve labeling applications. With two machine models available, the WSN Series ensures consistent and reliable shrink performance for various industries including food, pharmaceuticals, and consumer goods. Featuring tier adjustable manifolds, multiple steam zones, and high-quality steam heating elements, this tunnel is built to deliver a quality finish on PVC, PETG, OPS, and PLA labels. Its rugged stainless-steel construction and adjustable height base support make it a durable and efficient choice for your packaging operations, offering quick installation and ease of use.
Product Specifications
Additional Information Additional Information
RELIABLE SHRINK PERFORMANCEWSN Series Steam Heat Tunnels are designed and manufactured to consistently take on the most difficult shrink labeling operations while keeping energy costs low. Equipped with multiple steam zones and tier adjustable manifolds, WSN tunnels direct the steam heat where needed to produce a precise, high quality finished appearance of PVC, PETG, OPS, and PLA labels and neck bands. Tunnel steam zones can be set independently to ensure a quality finish regardless of container shape or size.BUILT FOR YOUR OPERATIONDesigned to work as an integral part of your day-to-day packaging operations, the WSN Series Tunnels are constructed from rugged stainless steel and supplied with an adjustable height base support. Installation can be completed in minutes using standard tools to have you up and running saving your company money and increasing your ROI. Due to its versatility, the WSN Series Heat Tunnels are also ideal for the changing needs of contract packagers.DESIGNED TO PERFORMThe WSN-300-2M utilizes a 2 meter length tunnel to accommodate a number of shrink sleeve applications, while the WSN-300-3M has a slightly larger 3 meter length tunnel for higher speeds. Both machines have a maximum temperature of 212°F and feature high quality steam heating elements and adjustable manifold for uniform heat distribution. Changing containers or labels create no problems; zone and tier adjustments and controls are done from the operator side of the tunnel, making adjustments safe, quick and easy.THE RIGHT CHOICERugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
Key Features Key Features

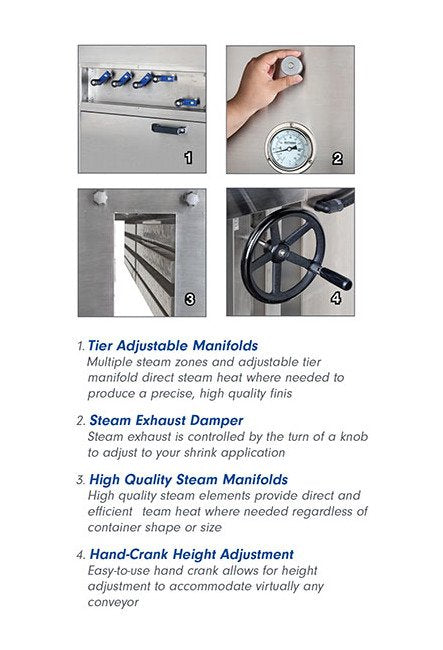

Tier Adjustable ManifoldsMultiple steam zones and adjustable tier manifold direct steam heat where needed to produce a precise, high quality finishSteam Exhaust DamperSteam exhaust is controlled by the turn of a knob to adjust to your shrink applicationHigh Quality Steam ManifoldsHigh quality steam elements provide direct and efficient team heat where needed regardless of container shape or sizeHand-Crank Height AdjustmentEasy-to-use hand crank allows for height adjustment to accommodate virtually any conveyor
Machine Dimensions Machine Height
83 in | 2100 mm
Machine Dimensions Machine Length
118 in | 3000 mm
Machine Dimensions Machine Width
35.5 in | 900 mm
Note Note
XL models available to accommodate wider and taller products. Please inquire about the XL models from your Authorized Distributor or AFM Representative.
Technical Specifications Steam Pressure
3 to 4 kg/cm² | 43 to 57 psi
Technical Specifications Tiers
4
Technical Specifications Water Consumption
300 L/h | 80 gal/h
Technical Specifications Zones
2
Tunnel Dimensions Tunnel Height
12 in | 300 mm
Tunnel Dimensions Tunnel Length
118 in | 3000 mm
Tunnel Dimensions Tunnel Width
5 in | 130 mm
