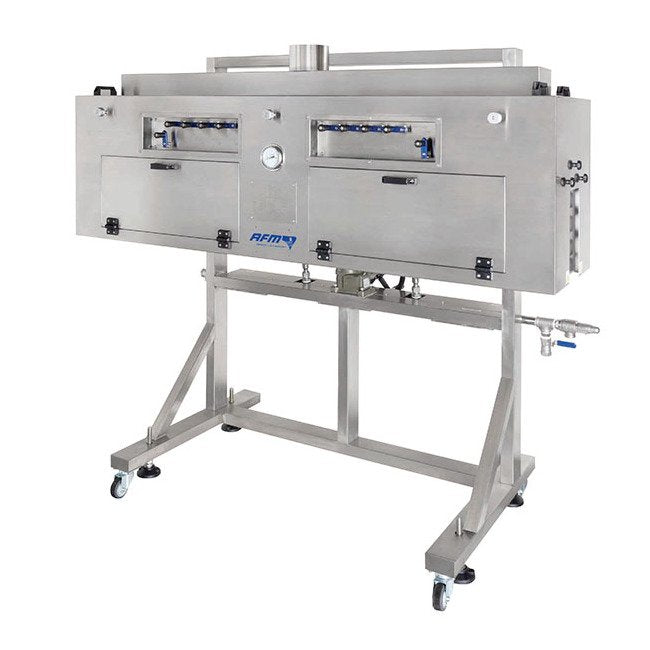

The WSN 3000 - 118" Steam Heat Tunnel is a reliable solution specially designed for precise shrink sleeve labeling operations in various industries like food, beverage, pharmaceuticals, and more. With adjustable steam zones and tier mechanisms, this tunnel ensures uniform heat distribution for impeccable PVC, PETG, OPS, and PLA labels and neck bands. Its rugged stainless steel construction and easy installation make it an integral part of your packaging operations, increasing ROI and accommodating changing needs efficiently. Trust in American Film & Machinery for high-quality, efficient shrink sleeve labeling solutions.
Product Specifications
Built For Your Operation Built For Your Operation
Designed to work as an integral part of your day-to-day packaging operations, the WSN Series Tunnels are constructed from rugged stainless steel and supplied with an adjustable height base support. Installation can be completed in minutes using standard tools to have you up and running saving your company money and increasing your ROI. Due to its versatility, the WSN Series Heat Tunnels are also ideal for the changing needs of contract packagers.
Designed To Perform Designed To Perform
The WSN-300-2M utilizes a 2 meter length tunnel to accommodate a number of shrink sleeve applications, while the WSN-300-3M has a slightly larger 3 meter length tunnel for higher speeds. Both machines have a maximum temperature of 212°F and feature high quality steam heating elements and adjustable manifold for uniform heat distribution. Changing containers or labels create no problems; zone and tier adjustments and controls are done from the operator side of the tunnel, making adjustments safe, quick and easy.
Reliable Shrink Performance Reliable Shrink Performance

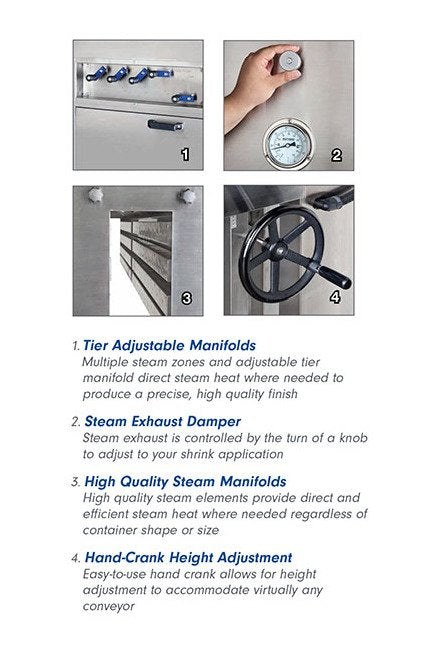

WSN Series Steam Heat Tunnels are designed and manufactured to consistently take on the most difficult shrink labeling operations while keeping energy costs low. Equipped with multiple steam zones and tier adjustable manifolds, WSN tunnels direct the steam heat where needed to produce a precise, high quality finished appearance of PVC, PETG, OPS, and PLA labels and neck bands. Tunnel steam zones can be set independently to ensure a quality finish regardless of container shape or size.
Technical Specs Machine Height
83 in | 2100 mm
Technical Specs Machine Length
118 in | 3000 mm
Technical Specs Machine Width
35.5 in | 900 mm
Technical Specs Note For Machine Tunnel And Water Consumption
XL models available to accommodate wider and taller products. Please inquire about the XL models from your Authorized Distributor or AFM Representative.
Technical Specs Steam Pressure
3 to 4 kg/cm² | 43 to 57 psi
Technical Specs Tunnel Height
12 in | 300 mm
Technical Specs Tunnel Length
118 in | 3000 mm
Technical Specs Tunnel Width
5 in | 130 mm
Technical Specs Water Consumption
52 L/h | 80 gal/h
Technical Specs Zones And Tiers
2 Zones with 4 tiers
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
