WSN Series Heat Tunnel for Shrink Sleeve Labeling
WSN Series Heat Tunnel for Shrink Sleeve Labeling
SKU:WSN-126721
Efficient and precise WSN Series Heat Tunnel for shrink sleeve labeling. Rugged design, reliable performance, and low energy costs. Ideal for food, pharma, and consumer goods.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
WSN Series Heat Tunnel for Shrink Sleeve Labeling
$8,999.00
Quantity: 1
Claim Your Seller Account
WSN Series Heat Tunnel for Shrink Sleeve Labeling
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

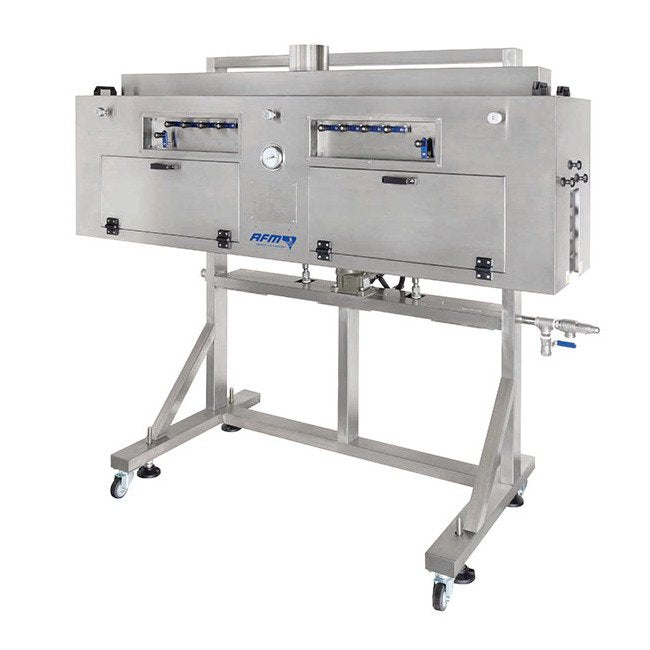

The WSN Series Heat Tunnel for Shrink Sleeve Labeling by American Film & Machinery is an essential solution for precise and efficient shrink labeling operations in industries such as food, pharmaceuticals, health and beauty, and more. With two models available, the WSN-300-2M and WSN-300-3M, this heat tunnel is designed with reliable shrink performance in mind. Its rugged stainless steel construction, adjustable height base support, and adjustable steam zones ensure a consistent, high-quality finish on PVC, PETG, OPS, and PLA labels and neck bands. Easy to install and operate, this heat tunnel is a cost-effective choice for enhancing packaging efficiency and meeting your shrink sleeve labeling needs.
Product Specifications
Built For Your Operation Built For Your Operation
Designed to work as an integral part of your day-to-day packaging operations, the WSN Series Tunnels are constructed from rugged stainless steel and supplied with an adjustable height base support. Installation can be completed in minutes using standard tools to have you up and running saving your company money and increasing your ROI. Due to its versatility, the WSN Series Heat Tunnels are also ideal for the changing needs of contract packagers.
Designed To Perform Designed To Perform
The WSN-300-2M utilizes a 2 meter length tunnel to accommodate a number of shrink sleeve applications, while the WSN-300-3M has a slightly larger 3 meter length tunnel for higher speeds. Both machines have a maximum temperature of 212°F and feature high quality steam heating elements and adjustable manifold for uniform heat distribution. Changing containers or labels create no problems; zone and tier adjustments and controls are done from the operator side of the tunnel, making adjustments safe, quick and easy.
Reliable Shrink Performance Reliable Shrink Performance

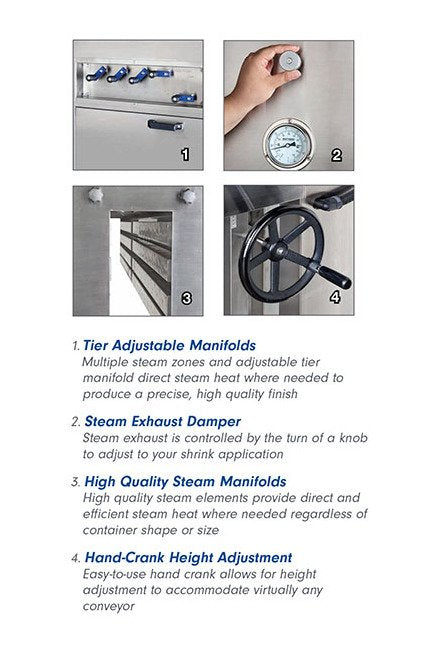

WSN Series Steam Heat Tunnels are designed and manufactured to consistently take on the most difficult shrink labeling operations while keeping energy costs low. Equipped with multiple steam zones and tier adjustable manifolds, WSN tunnels direct the steam heat where needed to produce a precise, high quality finished appearance of PVC, PETG, OPS, and PLA labels and neck bands. Tunnel steam zones can be set independently to ensure a quality finish regardless of container shape or size.
Technical Specs Machine Height
83 in | 2100 mm
Technical Specs Machine Length
79 in | 2000 mm
Technical Specs Machine Width
35.5 in | 900 mm
Technical Specs Note For Machine Tunnel And Water Consumption
XL models available to accommodate wider and taller products. Please inquire about the XL models from your Authorized Distributor or AFM Representative.
Technical Specs Steam Pressure
3 to 4 kg/cm² | 43 to 57 psi
Technical Specs Tunnel Height
12 in | 300 mm
Technical Specs Tunnel Length
79 in | 2000 mm
Technical Specs Tunnel Width
5 in | 130 mm
Technical Specs Water Consumption
200 L/h | 300 gal/h
Technical Specs Zones And Tiers
2 Zones with 4 tiers
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
