WSO Mist Collector - 850 CFM Nominal Airflow - Donaldson Torit
WSO Mist Collector - 850 CFM Nominal Airflow - Donaldson Torit
SKU:WSO-19c744
Discover the WSO Mist Collector by Donaldson Torit - Superior mist, coolant, & smoke filtration for clean plant air.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
WSO Mist Collector - 850 CFM Nominal Airflow - Donaldson Torit
$4,999.99
Quantity: 1
Claim Your Seller Account
WSO Mist Collector - 850 CFM Nominal Airflow - Donaldson Torit
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

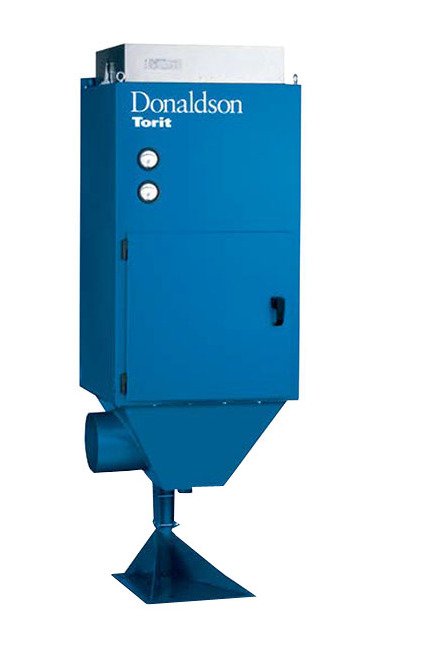

The WSO Mist Collector from Donaldson® Torit® offers exceptional mist, coolant, and smoke filtration solutions. With its Synteq XP™ Media Technology, this collector delivers superior drainage for extended filter life and reduced pressure drop. Featuring a 1.5 hp motor and a 10-year warranty, this collector ensures efficient and cost-effective operation. Its advanced design provides 3-in-1 mist solutions, quiet performance, energy savings, and configurations for diverse applications like Cold Forming, Oil Mist, and Machining Centers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
WSO Offers:3 in 1 solutions for mist applicationsAdvanced Synteq XP™ high efficiency mediaCross-flow design for better drainageEasy to change cartridge filtersEnergy savingsContinuous-duty designLower life cycle costsQuiet operationConfigurations for machine mounting, floor stands, or ducted central systemsUL-approved electrical components

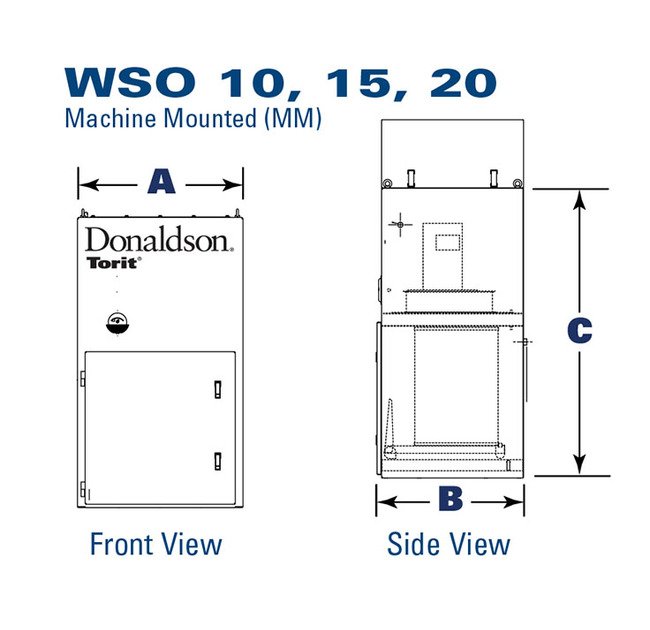

Dimensions Dimension A
24.0 in | 609.6 mm
Dimensions Dimension B
24 in | 609.6 mm
Dimensions Dimension C Without Afterfilter
41.2 in | 1046.5 mm
Dimensions Dimension C With Afterfilter
44.5 in | 1130.3 mm
Note
All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.
Specifications Applications
Cold Forming | Horizontal Grinder | Machining Centre | Oil Mist
Specifications Filter Height
15 in | 381 mm
Specifications Motor
1.5 hp
Specifications Nominal Airflow
850 ft³/min | 1444 m³/h
Specifications Note For Sound Level
Published dB(A) sound pressure levels were made in a hemi-anechoic chamber. Units were run with clean filters and maximum airflow through approximately 10 feet (3 meters) of ducting connected to an inlet plenum. Measurements were made 1.5 meters off the ground, 1 meter away from the collector, on the filter door side of the mist collector. Actual installed equipment sound pressure levels will vary depending upon the measurement location, the operating conditions, the installation, and the surrounding environment.
Specifications Number Of Filters
1
Specifications Oil Filter Area
109 ft² | 10.1 m²
Specifications Shipping Weight
250 lb | 113.4 kg
Specifications Smoke Filter Area
85 ft² | 7.9 m²
Specifications Sound Level Without Afterfilter
70 dBA
Specifications Sound Level With Afterfilter
68 dBA
Specifications Warranty
10 years
Specifications Water Filter Area
125 ft² | 11.6 m²

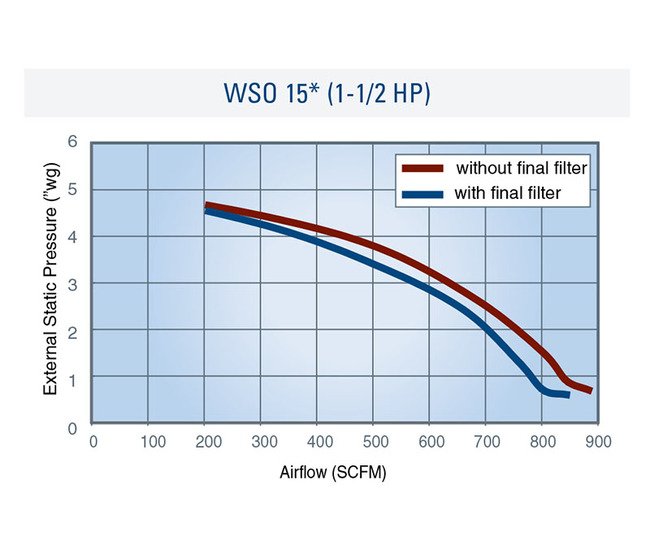

System Curves For Powerful Performance
Unlike other products that require upgrades for more demanding applications, each WSO comes standard with a unique high performance fan. The system curves below indicate available external static pressure to the unit with clean filters.
