Wyler Clinotronic S Electronic Inclinometer
Wyler Clinotronic S Electronic Inclinometer
SKU:INC-0f4c07
Wyler Clinotronic S Electronic Inclinometer - Precision instrument with wireless data transmission, user-friendly interface, and compatibility with Android™/iOS™ devices.
Regular price
$1,200.00
Regular price
Sale price
$1,200.00
Unit price
per
Initiate Order
Wyler Clinotronic S Electronic Inclinometer
$1,200.00
Quantity: 1
Claim Your Seller Account
Wyler Clinotronic S Electronic Inclinometer
$1,200.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

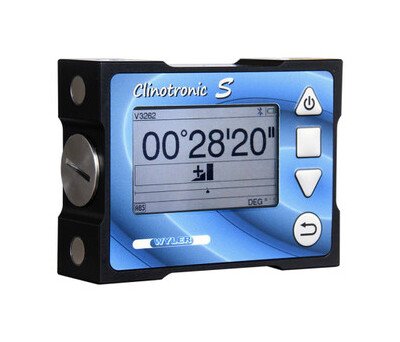

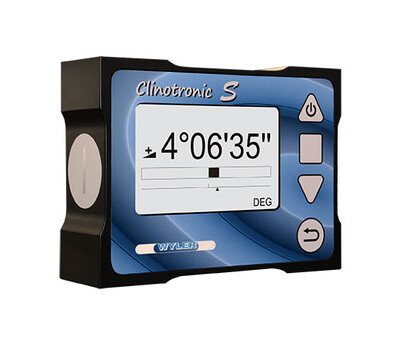

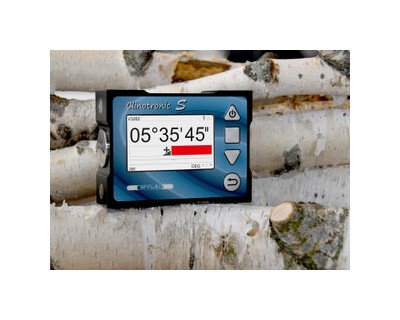

The Wyler Clinotronic S Electronic Inclinometer without Inserts is a precision instrument with wireless data transmission, designed to measure inclinations up to ±45 degrees. Building on the success of the Clinotronic PLUS, this inclinometer boasts wireless functionality, excellent display with low power consumption, user-friendly interface, and can be adjusted to local gravity for increased accuracy. It offers features like data transmission via cable, compatibility with Android™ and iOS™ devices, and comes with the wylerCONNECT MINI for Bluetooth® communication. The product is supplied with software for continuous measurement, monitoring, and calibration certificate for increased accuracy and efficiency.
Product Specifications
Additional Information Additional Information
Increased accuracy
Features Features

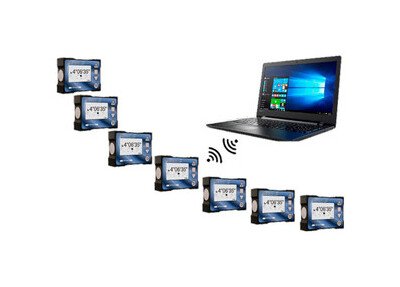

Wireless Functionality:Clinotronic S can be connected to an Android⢠or iOS⢠device, which can then be used as remote display. This new feature makes the instrument much more versatile and opens new applications.Furthermore each Clinotronic S is supplied with the wylerCONNECT MINI, a Bluetooth® USB-communication module.The wylerCONNECT MINI allows to send data from the Clinotronic S units to a laptop. This ensures a more efficient adjustment of machines.Data Transmission via CableIt goes without saying that data transmission via the USB cable to a laptop is possible as well.Excellent DisplayThe large color display with low power consumption is backlit and has a high contrast. It therefore provides excellent readability even under adverse conditions like a workshop or under a machine.User FriendlyThe completely redesigned Man-Machine-Interface allows a very intuitive handling.Adjusted to Local GravityTo ensure best possible accuracy the Clinotronic S can be adjusted to local gravity.SoftwareThe following software products can be used to collect data from a Clinotronic S in a laptop:Continuous measurement / monitoring:wylerCHART and wylerDYNAMSimple software to insert single values directly into e.g. EXCEL:wylerINSERTCalibration Certificate:The CLINOTRONIC S can be delivered with an internationally recognised Calibration Certificate against a surcharge
Technical Specs Clinotronic S Weight Including Lithium Ion Batte
400 g
Technical Specs Drift H
10 arc·sec
Technical Specs External Power Usb C
5 V
Technical Specs Height
30 mm
Technical Specs Ingress Protection Ip Class With Protection Cap
IP 64
Technical Specs Length
100 mm
Technical Specs Limits Of Error Mw Measuring Value Temperature T
0.04% Mw / min 5 arc·sec
Technical Specs Lithium Ion Battery Power
3333 mAh | 12 Wh
Technical Specs Lithium Ion Battery Voltage
3.6 V
Technical Specs Maximum Battery Life With Medium Brightness Of L
33 hours
Technical Specs Maximum Current Consumption During Charging Proc
500 mA | 5 V
Technical Specs Measuring Range
45 º
Technical Specs Operating Temperature
0 to 40 ºC
Technical Specs Response Time
<5 s
Technical Specs Sensitivity
5 arc·sec | 0.020 mm/m
Technical Specs Storage Temperature
-20 to 60 ºC
Technical Specs Weight Including Usb Power Adapter Usb Cable Inf
850 g
Technical Specs Width
75 mm
