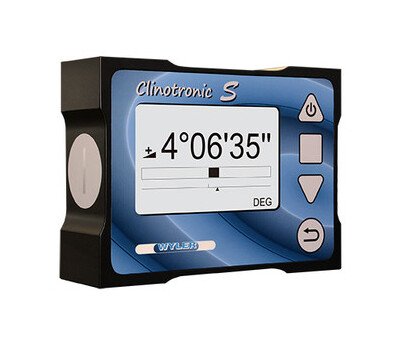

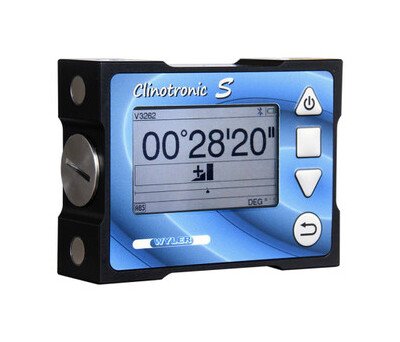

Wyler Clinotronic S Inclinometer with Wireless Data Transmission
Wyler Clinotronic S Inclinometer with Wireless Data Transmission
SKU:INC-997e03
Precision inclinometer with wireless data transmission and local gravity adjustment for enhanced accuracy.
Regular price
$799.00
Regular price
Sale price
$799.00
Unit price
per
Initiate Order
Wyler Clinotronic S Inclinometer with Wireless Data Transmission
$799.00
Quantity: 1
Claim Your Seller Account
Wyler Clinotronic S Inclinometer with Wireless Data Transmission
$799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

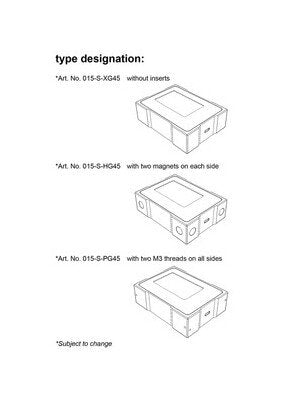

The Wyler Clinotronic S Electronic Inclinometer with Two M3 Threads on Each Side is a precision instrument designed for measuring inclinations of ±45 degrees. Building on the success of its predecessor, the Clinotronic S features wireless data transmission capability, excellent display with low power consumption, user-friendly interface, and adjustment to local gravity for enhanced accuracy. With a lithium-ion battery and external power options, it offers up to 33 hours of battery life. It comes equipped with wylerCONNECT MINI for Bluetooth connectivity to laptops, ensuring efficient adjustment of machines. This inclinometer is supplied with software for data collection and can be delivered with an internationally recognized Calibration Certificate for increased accuracy.
Product Specifications
Additional Information Additional Information
Increased accuracy
Features Features

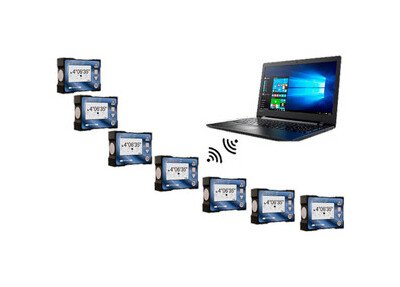

Wireless Functionality:Clinotronic S can be connected to an Android⢠or iOS⢠device, which can then be used as remote display. This new feature makes the instrument much more versatile and opens new applications.Furthermore each Clinotronic S is supplied with the wylerCONNECT MINI, a Bluetooth® USB-communication module.The wylerCONNECT MINI allows to send data from the Clinotronic S units to a laptop. This ensures a more efficient adjustment of machines.Data Transmission via CableIt goes without saying that data transmission via the USB cable to a laptop is possible as well.Excellent DisplayThe large color display with low power consumption is backlit and has a high contrast. It therefore provides excellent readability even under adverse conditions like a workshop or under a machine.User FriendlyThe completely redesigned Man-Machine-Interface allows a very intuitive handling.Adjusted to Local GravityTo ensure best possible accuracy the Clinotronic S can be adjusted to local gravity.SoftwareThe following software products can be used to collect data from a Clinotronic S in a laptop:Continuous measurement / monitoring:wylerCHART and wylerDYNAMSimple software to insert single values directly into e.g. EXCEL:wylerINSERTCalibration Certificate:The CLINOTRONIC S can be delivered with an internationally recognised Calibration Certificate against a surcharge
Technical Specs Clinotronic S Weight Including Lithium Ion Batte
400 g
Technical Specs Drift H
10 arc·sec
Technical Specs External Power Usb C
5 V
Technical Specs Height
30 mm
Technical Specs Ingress Protection Ip Class With Protection Cap
IP 64
Technical Specs Length
100 mm
Technical Specs Limits Of Error Mw Measuring Value Temperature T
0.04% Mw / min 5 arc·sec
Technical Specs Lithium Ion Battery Power
3333 mAh | 12 Wh
Technical Specs Lithium Ion Battery Voltage
3.6 V
Technical Specs Maximum Battery Life With Medium Brightness Of L
33 hours
Technical Specs Maximum Current Consumption During Charging Proc
500 mA | 5 V
Technical Specs Measuring Range
45 º
Technical Specs Operating Temperature
0 to 40 ºC
Technical Specs Response Time
<5 s
Technical Specs Sensitivity
5 arc·sec | 0.020 mm/m
Technical Specs Storage Temperature
-20 to 60 ºC
Technical Specs Weight Including Usb Power Adapter Usb Cable Inf
850 g
Technical Specs Width
75 mm
