Wyler Clinotronic S Inclinometer with Wireless Data Transmission
Wyler Clinotronic S Inclinometer with Wireless Data Transmission
SKU:INC-157891
Precisely measure inclinations with the Wyler Clinotronic S Inclinometer. Wireless, user-friendly, and adjustable to local gravity for ultimate accuracy.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Wyler Clinotronic S Inclinometer with Wireless Data Transmission
$799.99
Quantity: 1
Claim Your Seller Account
Wyler Clinotronic S Inclinometer with Wireless Data Transmission
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wyler Clinotronic S Electronic Inclinometer sets a new standard in precision measurement with a measuring range of ±45 degrees and 5 arc·sec sensitivity. Featuring wireless functionality, a user-friendly interface, and local gravity adjustments, this inclinometer is perfect for a wide range of applications. It comes with a Calibration Certificate for increased accuracy and can be connected to Android™ or iOS™ devices for remote display, making it versatile and efficient.
Product Specifications
Additional Information Additional Information
Increased accuracy
Features Features

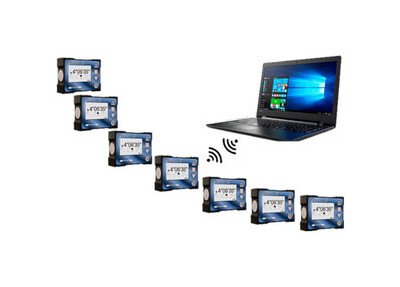

Wireless Functionality:Clinotronic S can be connected to an Android⢠or iOS⢠device, which can then be used as remote display. This new feature makes the instrument much more versatile and opens new applications.Furthermore each Clinotronic S is supplied with the wylerCONNECT MINI, a Bluetooth® USB-communication module.The wylerCONNECT MINI allows to send data from the Clinotronic S units to a laptop. This ensures a more efficient adjustment of machines.Data Transmission via CableIt goes without saying that data transmission via the USB cable to a laptop is possible as well.Excellent DisplayThe large color display with low power consumption is backlit and has a high contrast. It therefore provides excellent readability even under adverse conditions like a workshop or under a machine.User FriendlyThe completely redesigned Man-Machine-Interface allows a very intuitive handling.Adjusted to Local GravityTo ensure best possible accuracy the Clinotronic S can be adjusted to local gravity.SoftwareThe following software products can be used to collect data from a Clinotronic S in a laptop:Continuous measurement / monitoring:wylerCHART and wylerDYNAMSimple software to insert single values directly into e.g. EXCEL:wylerINSERTCalibration Certificate:The CLINOTRONIC S can be delivered with an internationally recognised Calibration Certificate against a surcharge
Technical Specs Clinotronic S Weight Including Lithium Ion Batte
400 g
Technical Specs Drift H
10 arc·sec
Technical Specs External Power Usb C
5 V
Technical Specs Height
30 mm
Technical Specs Ingress Protection Ip Class With Protection Cap
IP 64
Technical Specs Length
100 mm
Technical Specs Limits Of Error Mw Measuring Value Temperature T
0.04% Mw / min 5 arc·sec
Technical Specs Lithium Ion Battery Power
3333 mAh | 12 Wh
Technical Specs Lithium Ion Battery Voltage
3.6 V
Technical Specs Maximum Battery Life With Medium Brightness Of L
33 hours
Technical Specs Maximum Current Consumption During Charging Proc
500 mA | 5 V
Technical Specs Measuring Range
45 º
Technical Specs Operating Temperature
0 to 40 ºC
Technical Specs Response Time
<5 s
Technical Specs Sensitivity
5 arc·sec | 0.020 mm/m
Technical Specs Storage Temperature
-20 to 60 ºC
Technical Specs Weight Including Usb Power Adapter Usb Cable Inf
850 g
Technical Specs Width
75 mm
