Wyler/Fowler NivelSWISS-D Electronic Inclinometer
Wyler/Fowler NivelSWISS-D Electronic Inclinometer
SKU:INC-b1335a
Wyler/Fowler NivelSWISS-D Digital Inclinometer - Precision instrument for accurate alignments and adjustments.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Wyler/Fowler NivelSWISS-D Electronic Inclinometer
$499.99
Quantity: 1
Claim Your Seller Account
Wyler/Fowler NivelSWISS-D Electronic Inclinometer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

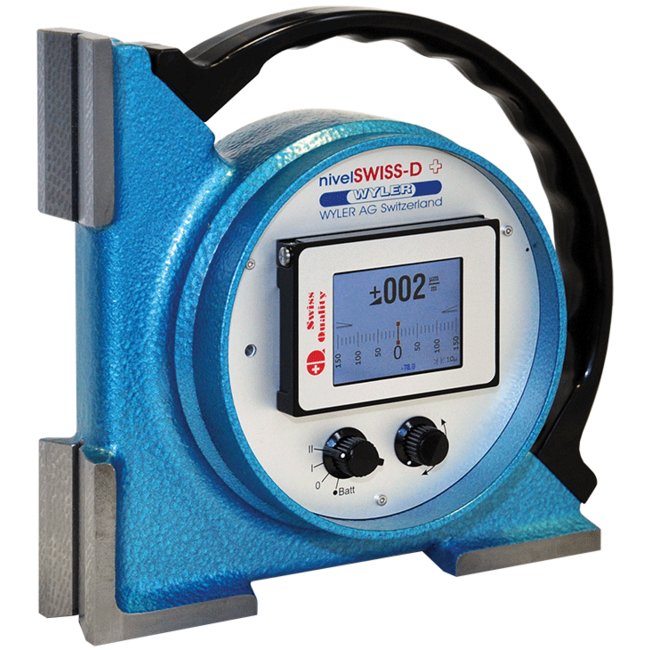

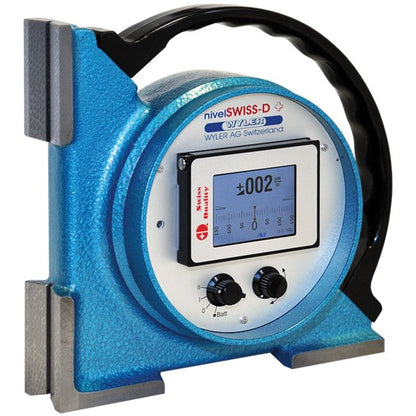

The Wyler/Fowler NivelSWISS-D Digital Inclinometer is a precision electronic device designed for accurate measurement and alignment tasks. With a measuring range sensitivity of 10 µm/m and 0.150 mm/m, this inclinometer provides exceptional stability for prolonged use. Its solid cast iron body, prismatic measuring flat surfaces, and hand-scraped measuring faces ensure extraordinary precision perfect for adjusting machine tools and structures. Ideal for institutional and government procurement, the nivelSWISS-D meets high standards of durability, accuracy, and reliability.
Product Specifications
Features Features
The nivelSWISS is a battery powered electronic inclinometer with an analog display on a built-in galvanometer. The remarkable stability of the zero-point makes this instrument particularly suitable for long lasting measuring tasks and for adjustment or alignment works on large guide-ways.The nivelSWISS is mounted in a solid body of carefully treated cast iron and is equipped with two prismatic measuring flat surfaces and shafts (diameters à 20... 120mm) horizontally or vertically.The measuring faces are carefully hand scraped to obtain an extraordinary precision. This makes the instrument perfect for adjustments or checks on rectangular geometrical elements of machine tools and structures.
Measuring Range Measuring Range Ii Analogue Output
0.24 V
Measuring Range Measuring Range Ii Range
0.150 mm/m
Measuring Range Measuring Range Ii Sensitivity
10 µm/m
Measuring Range Measuring Range I Analogue Output
0.24 V
Measuring Range Measuring Range I Range
0.750 mm/m
Measuring Range Measuring Range I Sensitivity
50 µm/m
Technical Specs Brands
Wyler
