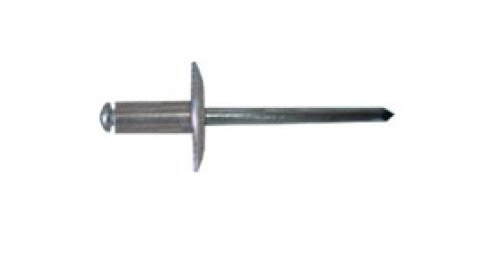

X-Large Aluminum Alloy Blind Rivet - 4.8mm x 30.0mm
X-Large Aluminum Alloy Blind Rivet - 4.8mm x 30.0mm
SKU:OPE-bc80cb
High-quality X-Large Blind Rivet - 4.8mm x 30.0mm, Aluminum Alloy construction, strong grip range, ideal for industrial use
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
X-Large Aluminum Alloy Blind Rivet - 4.8mm x 30.0mm
$49.99
Quantity: 1
Claim Your Seller Account
X-Large Aluminum Alloy Blind Rivet - 4.8mm x 30.0mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The X-Large Open End Blind Rivet is a durable fastening solution suitable for a wide range of applications. It features a 4.8mm diameter and 30.0mm body length, constructed from high-quality Aluminum Alloy (AA 5052). With a strong grip range of 20.0mm to 25.0mm and impressive nominal forces of 150 kgf shear force and 220 kgf tensile force, this rivet ensures secure and reliable fastening in various conditions. The low carbon steel SAE 1006-1022 mandrel with zinc plated chromium finish adds to its corrosion resistance and robustness, making it ideal for industrial and institutional use.
Product Specifications
Nominal Dimensions Body Length
30.0 mm | 1.181 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.8 mm | 0.622 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
25.0 mm | 0.984 in
Nominal Dimensions Minimum Grip Range
20.0 mm | 0.787 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
