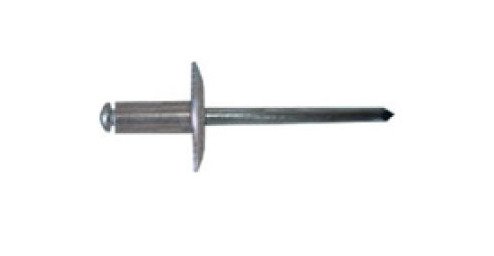

X-Large Aluminum Blind Rivet, 4.8mm x 16.0mm
X-Large Aluminum Blind Rivet, 4.8mm x 16.0mm
SKU:OPE-1c0ea5
Heavy-duty X-Large Aluminum Blind Rivet for secure and durable fastening in industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
X-Large Aluminum Blind Rivet, 4.8mm x 16.0mm
$39.99
Quantity: 1
Claim Your Seller Account
X-Large Aluminum Blind Rivet, 4.8mm x 16.0mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The X-Large Open End Blind Rivet features a 4.8mm diameter and 16.0mm body length, ideal for heavy-duty applications. Made from Aluminum Alloy with a zinc-plated chromium mandrel, it offers exceptional strength with a nominal shear force of 150kgf and tensile force of 220kgf. Perfect for securing materials with grip ranges from 9.0mm to 11.0mm, this rivet ensures reliable and durable fastening in various industries.
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.8 mm | 0.622 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
11.0 mm | 0.433 in
Nominal Dimensions Minimum Grip Range
9.0 mm | 0.354 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
