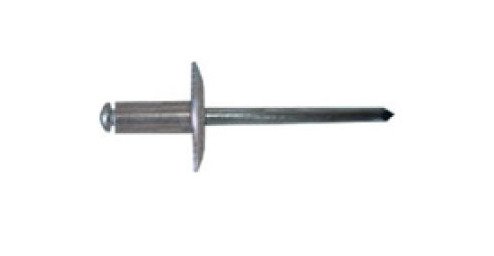

X-Large Aluminum Blind Rivet - 4.8mm x 22.0mm

Name: X-Large Aluminum Blind Rivet - 4.8mm x 22.0mm
Brand: Ornit USA
SKU: OPE-c7c36f
Price: 129.99 USD
Availability: OutOfStock

SKU:OPE-c7c36f

High-strength X-Large Aluminum Blind Rivet, 4.8mm x 22.0mm, meets top industry standards for durability and performance.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The X-Large Aluminum Blind Rivet, featuring a 4.8mm diameter and 22.0mm body length, is a high-quality fastener suitable for a wide range of applications. Manufactured by Ornit, this rivet meets stringent industry standards, including Federal/DoD procurement requirements and GSA specifications. Constructed from durable aluminum alloy (AA 5052) with a zinc-plated chromium mandrel, this rivet ensures reliable performance and corrosion resistance. With a shear force of 150 kgf and a tensile force of 220 kgf, this rivet offers exceptional strength and durability.

Product Specifications

Nominal Dimensions Body Length

22.0 mm | 0.866 in

Nominal Dimensions Diameter

4.8 mm

Nominal Dimensions Drillhole Size

4.9 mm | 0.193 in

Nominal Dimensions Head Diameter

15.8 mm | 0.622 in

Nominal Dimensions Head Thickness

1.80 mm | 0.071 in

Nominal Dimensions Mandrel Diameter

2.61 mm | 0.103 in

Nominal Dimensions Maximum Grip Range

17.0 mm | 0.669 in

Nominal Dimensions Minimum Grip Range

15.0 mm | 0.591 in

Nominal Forces Nominal Shear Force

150 kgf | 330 lbf

Nominal Forces Nominal Tensile Force

220 kgf | 484 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (2.5 mg) to AA 5052

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

2000

Technical Specs Head Style

Extra Large

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel SAE 1006-1022

X-Large Aluminum Blind Rivet - 4.8mm x 22.0mm
