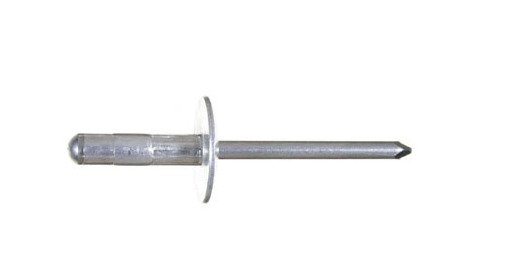

X-Large Head Rivet - 4.0mm Aluminum/Stainless Steel
X-Large Head Rivet - 4.0mm Aluminum/Stainless Steel
SKU:UFI-338182
Durable 4.0mm Aluminum/Stainless Steel X-Large Head Rivet for secure fastening in various applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
X-Large Head Rivet - 4.0mm Aluminum/Stainless Steel
$59.99
Quantity: 1
Claim Your Seller Account
X-Large Head Rivet - 4.0mm Aluminum/Stainless Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The X-Large Head Rivet in 4.0mm diameter and 16.9mm body length from our U-Fix series is crafted for durability and strength. Made of Aluminum Alloy ALmg 2.5 body with a Stainless Steel AISI 430/434 or Equivalent mandrel, it offers exceptional shear and tensile forces, meeting the highest procurement standards. With a maximum grip range of 12.7mm, this rivet ensures secure fastening suitable for a wide range of applications.
Product Specifications
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.5 mm | 0.059 in
Nominal Dimensions Mandrel Diameter
2.25 mm | 0.089 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
