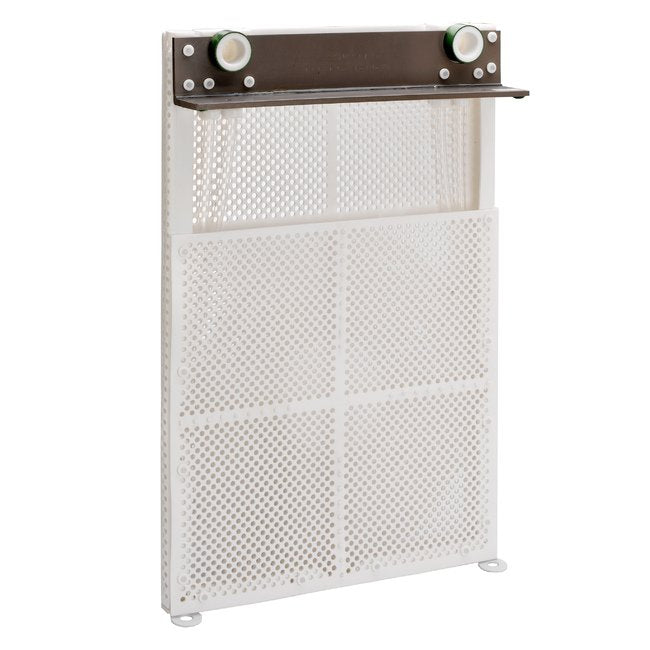

X-SERIES Fluoropolymer Heat Exchanger
X-SERIES Fluoropolymer Heat Exchanger
SKU:HEA-471eee
Efficient fluoropolymer heat exchanger with robust design, ideal for heating or cooling applications. Reliable construction for efficient heat transfer.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
X-SERIES Fluoropolymer Heat Exchanger
$799.99
Quantity: 1
Claim Your Seller Account
X-SERIES Fluoropolymer Heat Exchanger
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The X-SERIES Fluoropolymer Heat Exchanger offers a robust design with excellent chemical compatibility, making it ideal for heating or cooling applications. Constructed with fluoropolymer (FEP, PFA, or PTFE) and featuring heavy-duty CPVC mounting brackets, this heat exchanger ensures efficient heat transfer. With standard FEP coils rated up to 30 PSI steam service and optional PFA coils for 60 PSI steam service, it guarantees outstanding performance. Integral inlet/outlet connections reduce leaks, while its non-conductive properties eliminate stray currents in tanks. With heavy wall tubing for improved circulation and pressure drop reduction, this heat exchanger is a reliable choice for institutional and consumer buyers.
Product Specifications
Features And Benefits Features And Benefits
RUGGED CONSTRUCTION: All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with a heavy duty CPVC mounting bracket. Heavy duty CPVC mounting bracket. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch (13 mm) tubing, smaller coils have 1/4 inch (7 mm) tubing. LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation. NON-CONDUCTIVE: Eliminates stray currents in the tank. PRESSURE RATING: Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation. SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard. OPTIONS AVAILABLE (consult factory): Anti-floatation brackets. Special manifold connections. Custom and bottom style configurations. Dual coils for both heating and cooling.
Note Note
Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
Specifications Connections
1-1/2" FNPT
Specifications Dimension A
23-1/2 " | 597 mm
Specifications Dimension B
23-1/2 " | 597 mm
Specifications Dimension C
4-1/2 " | 114 mm
Specifications Dimension D
29-1/2 " | 749 mm
Specifications Exchange Area
34.5 ft²
Specifications Manufacturer
Process Technology
Specifications Shipping Weight
36.0 Pound
Specifications Tubing Diameter
1/2 " | 13 mm
Specifications Weight
36.0 lbs | 16.3 kg
