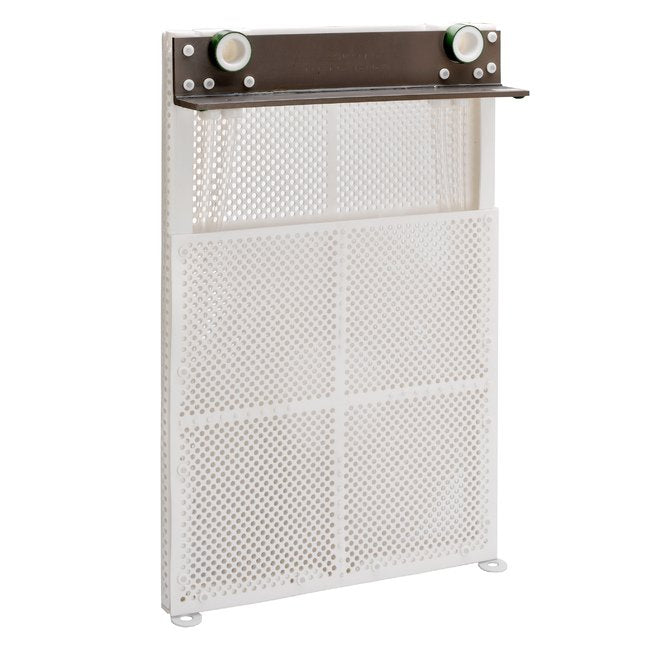

The X Series Fluoropolymer Heat Exchanger is designed for robust performance in heating or cooling applications. Constructed with FEP, PFA, or PTFE fluoropolymer materials, this heat exchanger ensures excellent chemical compatibility. Featuring heavy-duty CPVC mounting brackets and heavy wall tubing that enhances circulation while reducing pressure drop, this heat exchanger offers outstanding performance. It is non-conductive, eliminating stray currents, and comes with integral inlet/outlet connections for leak-free operation. With standard coils rated up to 30 PSI steam service and options for custom configurations, this heat exchanger provides reliable and efficient heat transfer.
Product Specifications
Features And Benefits Features And Benefits
RUGGED CONSTRUCTION: All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with a heavy duty CPVC mounting bracket. Heavy duty CPVC mounting bracket. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch (13 mm) tubing, smaller coils have 1/4 inch (7 mm) tubing. LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation. NON-CONDUCTIVE: Eliminates stray currents in the tank. PRESSURE RATING: Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation. SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard. OPTIONS AVAILABLE (consult factory): Anti-floatation brackets. Special manifold connections. Custom and bottom style configurations. Dual coils for both heating and cooling.
Note Note
Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
Specifications Connections
1" FNPT
Specifications Dimension A
23-1/2 " | 597 mm
Specifications Dimension B
23-1/2 " | 597 mm
Specifications Dimension C
3-1/4 " | 82.5 mm
Specifications Dimension D
29-1/2 " | 749 mm
Specifications Exchange Area
23.00 ft²
Specifications Manufacturer
Process Technology
Specifications Shipping Weight
30.0 Pound
Specifications Tubing Diameter
1/2 " | 13 mm
Specifications Weight
30.0 lbs | 13.6 kg
