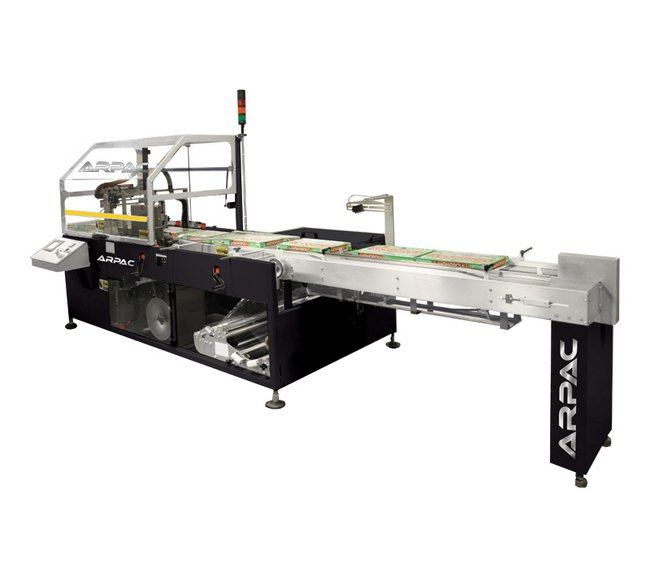

XLR8 Servo-Driven Side Seal Horizontal Wrapping Machine
XLR8 Servo-Driven Side Seal Horizontal Wrapping Machine
SKU:HOR-3272c3
Efficiently wrap up to 120 packages/min with precision and durability. Ideal for various industries. Meets industry standards.
Regular price
$27,999.00
Regular price
Sale price
$27,999.00
Unit price
per
Initiate Order
XLR8 Servo-Driven Side Seal Horizontal Wrapping Machine
$27,999.00
Quantity: 1
Claim Your Seller Account
XLR8 Servo-Driven Side Seal Horizontal Wrapping Machine
$27,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The XLR8 Servo-Driven Side Seal Horizontal Wrapping Machine is a versatile solution for high-speed packaging needs, capable of wrapping up to 120 packages per minute. With features like adjustable film forming, servo-driven components for precise sealing, and laser-cut construction, it ensures durable and consistent performance. Ideal for various industries such as pharmaceuticals, food products, and cosmetics, this machine offers ease of operation and maintenance. Its compliance with industry standards like FAR, NIST, and TAA makes it a reliable choice for government and institutional procurement.
Product Specifications
Additional Information Additional Information
Multi-axis servo-driven operation offers precise electronic control for immediate and accurate sealing action, ensuring strong, consistent seals. The seal opening height is electronically programmed to vary with product height, maximizing output speeds for smaller products. The servo pouch length adjustment enables "on-the-fly" bag length changes without changing the flight spacing. All adjustments are made from the operator side of the machine and product changeovers can be completed quickly and easily.The XLR8 uses single wound film which is less costly than center folded rolls and increases uptime efficiency. A unique side sealing mechanism ensures strong attractive trim seals using polyolefin, PVC or polyethylene shrink film. The XLR8's cross-seal system has a precision temperature control that maintains accurate heat settings. An independently driven scrap removal system compacts excess film. A side loading film cradle allows easy roll loading and reduces film changeover time. Located beneath the film forming table, the film requires no additional floor space. Compact in design, the XLR8 is easily integrated into any existing production environment.
Features Features
Heavy-duty rugged construction for high durability and around-the-clock operationLaser cut and CNC machined components for maximum precision and strengthPowder coat finish that provides a durable scratch resistant surface and prevents corrosionHorizontal cross sealAllen-Bradley® PanelView 600 Plus operator interface with color touchscreen, message display and self-diagnosticsDigital counters and scales for easy and repeatable product setupGuards electrically interlocked6' flighted infeed with safety torque limiterAdjustable film forming headServo-driven seal carriage for smooth product transitionsServo-driven seal head for consistent pressure and heatServo-driven infeed conveyor8'' seal bar openingSlide-out side loading film cradleMissing product detectionNEMA 12 main electrical cabinet and controlsEvenly wound trim removal system compacts film trim for easy disposalRelaxed film tension at cross sealCentral point lubrication simplifies preventive maintenanceLow film alert warns that a film change over will soon be necessary
Options Options
Seal jaw bridge (servo)Stainless steel constructionPrint registered film capabilityPneumatic hole punch systemEasy open film perforation systemSide film cradle for CF filmSide film cradle for flat film with folder
Specifications Applications
Bottles | Cosmetics | Food products | Games | Hardware | Linens | Mailers | Multipacks | Paper Products | Pharmaceutical | Software | Spray cans | Toys
Specifications Product Height When Seal Bar Is Horizontal
0.75 to 7.5 in
Specifications Product Height When Seal Bar Is Vertical
2 to 12 in
Specifications Product Length When Seal Bar Is Horizontal
3.5 to 60 in
Specifications Product Length When Seal Bar Is Vertical
3.5 to 60 in
Specifications Product Width When Seal Bar Is Horizontal
2 to 16 in
Specifications Product Width When Seal Bar Is Vertical
2 to 7.5 in
Specifications Speed
Up to 120 packages per minute
