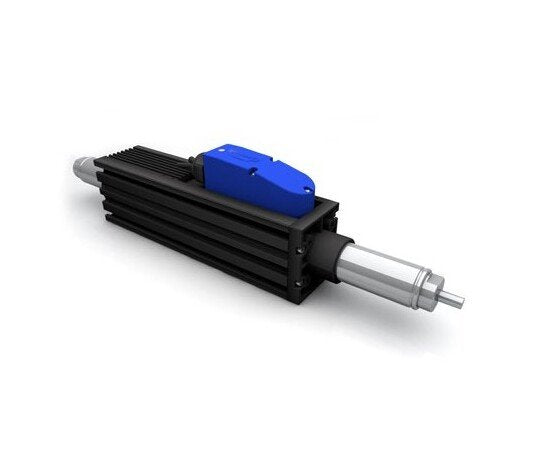

• XT Series Linear Motor - High Force and Current, IP67 Protected - Image 1

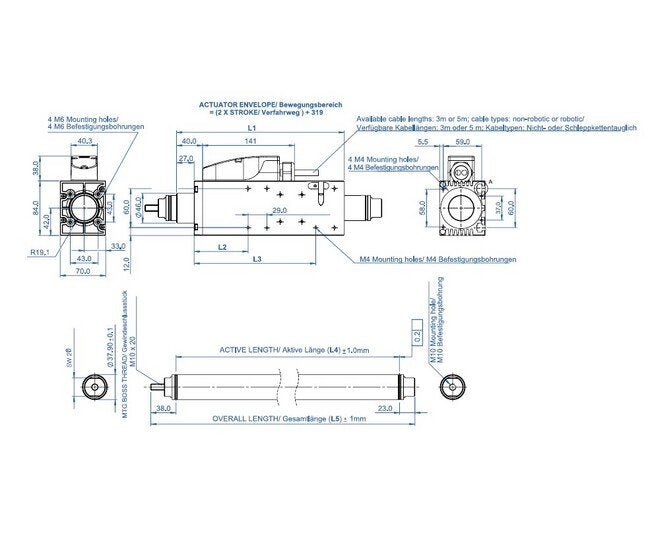

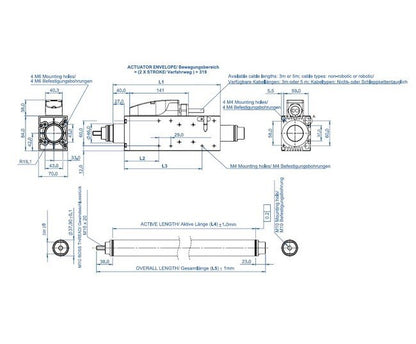

  • XT Series Linear Motor - High Force and Current, IP67 Protected - Image 2
1 2
Dunkermotoren →

XT Series Linear Motor - High Force and Current, IP67 Protected

XT Series Linear Motor - High Force and Current, IP67 Protected

LIN-97c6df

Powerful and precise linear motor with IP67 protection for high-performance applications.

$1,899.99
$1,899.99
Sale

Initiate Order

XT Series Linear Motor - High Force and Current, IP67 Protected

XT Series Linear Motor - High Force and Current, IP67 Protected

$1,899.99

Quantity: 1

Claim Your Seller Account

XT Series Linear Motor - High Force and Current, IP67 Protected

XT Series Linear Motor - High Force and Current, IP67 Protected

$1,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The XT Series 1488N Peak Force and 20A Peak Current Linear Motor offers precise positioning with ±25µm repeatability and ±400µm absolute accuracy. Integrated with a high-resolution sin/cos sensor, it ensures maintenance-free operation with low noise and high dynamic performance. This linear motor meets Ingress Protection (IP67) standards, making it suitable for food-grade applications and resistant to vibrations.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
255 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
2.02 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
212.7 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
105.2 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
3.1 m/s
Technical Specs Maximum Speed Stb
3.3 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 15%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 33 mm stroke, no payload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
357 m/s²
Technical Specs Peak Acceleration Stb
295 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
1488 N
Technical Specs Peak Power
1860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
25 µm
