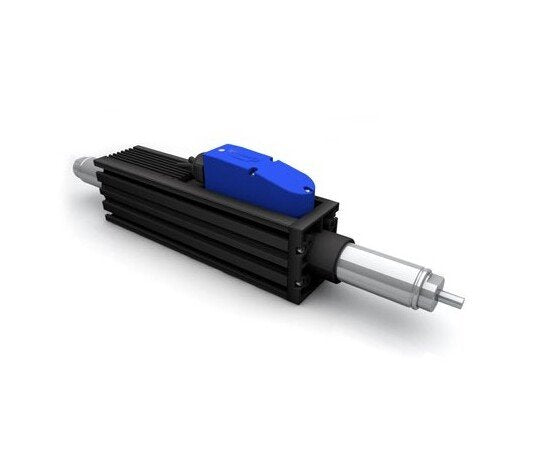

XT Series Linear Motor - High Power & Precision
XT Series Linear Motor - High Power & Precision
SKU:LIN-14ba79
Experience precision and power with the XT Series Linear Motor. Ideal for industrial applications, it offers unmatched accuracy and high power.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
XT Series Linear Motor - High Power & Precision
$1,499.99
Quantity: 1
Claim Your Seller Account
XT Series Linear Motor - High Power & Precision
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The XT Series 744N Peak Force Linear Motor offers unparalleled precision and power, with integrated sin/cos sensor for precise positioning. Ideal for industrial applications, it boasts IP67 protection, 25µm repeatability, and compliance with European Conformity (CE) standards. Enjoy maintenance-free operation, low noise, high dynamic performance, and food-grade suitability. Experience superior vibration resistance and reliable force mode operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
255 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
2.28 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
120.1 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
52.6 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
4.7 m/s
Technical Specs Maximum Speed Stb
6.0 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 15%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 33 mm stroke, no payload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
250 m/s²
Technical Specs Peak Acceleration Stb
244 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
744 N
Technical Specs Peak Power
1860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
25 µm
