XTHF Extreme Temp Liquid Tight Metal Conduit

Name: XTHF Extreme Temp Liquid Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-6d8d6a
Price: 329.99 USD
Availability: OutOfStock

SKU:LIQ-6d8d6a

Extreme Temp, Halogen Free, Liquid Tight Metal Conduit for high temp applications. Crush-resistant, flame-retardant, and compliant with multiple standards.

$329.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

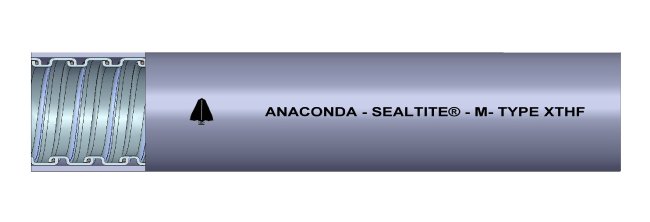

The Type XTHF Extreme Temperature, Halogen Free, Liquid Tight, Flexible, Metal Conduit is meticulously engineered for durability and reliability in the most extreme temperature applications. Crafted with a hot-dipped zinc galvanized steel core for superior crush and corrosion resistance, it features a robust LOW SMOKE, ZERO HALOGEN Silicone jacket that resists heat, oil, and corrosive chemicals. This conduit meets high-temperature conductor demands, with a temperature range of -94°F to +392°F (-70°C to +200°C). It complies with various standards such as IEC 60614-1 for Flame Resistance, IEC 60614-1 for Halogen Free, and more, making it ideal for industrial and institutional settings.

Product Specifications

Specifications Approx Inside Bend Radius

6.0 in

Specifications Approx Weight Per 100 Ft

71 lbs

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Electrical Trade Size

1 in

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.041-1.066 in

Specifications Jacket Benefits

Extreme Cold | High Heat | Liquid Tight | Low Smoke/Low Flame | Zero Halogen

Specifications Jacket Material

Silicone

Specifications Naed Pin

34731

Specifications Outside Diameter

1.290-1.315 in

Specifications Packaging

Standard Carton

Specifications Standard Length

100 ft

XTHF Extreme Temp Liquid Tight Metal Conduit
