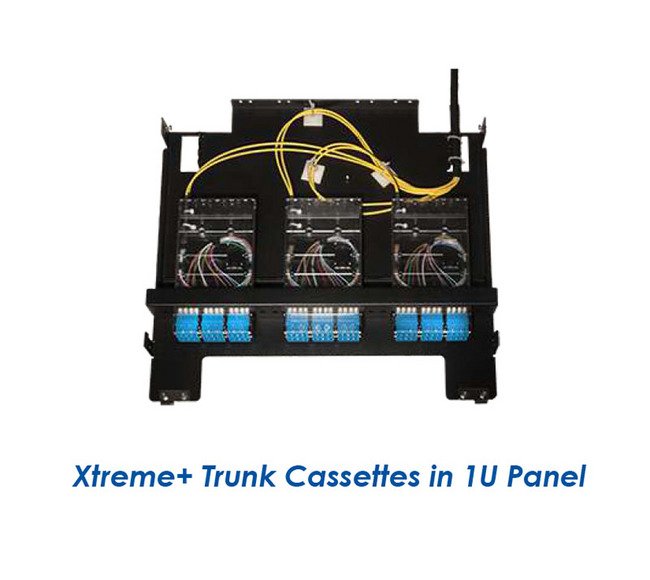

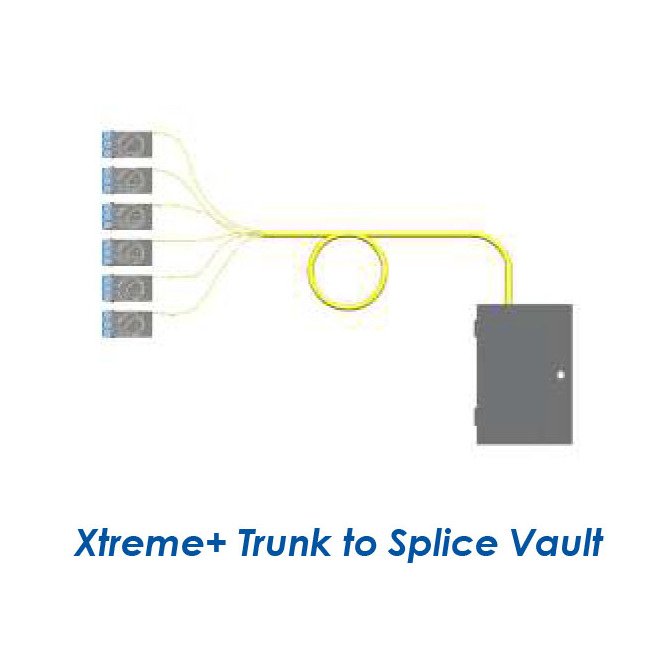

Pre-terminated or pre-stubbed cassettes with multi-fiber indoor OFNR/OFNP cables for routing and splicing to building entrance splice vaults. Xtreme+™ Trunks can also be spliced to Xtreme+™ Splice Cassettes for inter or intra building networks.Xtreme+™ Trunks are available with OS2, OS2 bend insensitive, OM3/OM4/OM5 fibers in fiber counts from 12-288 ribbon and 12-144 in indoor loose tube OFNP. Other cable types are available by request. Individual 12 fiber bundles from multi-fiber cables are broken out and protected with installed breakout kits and routed to individual 12 fiber cassettes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

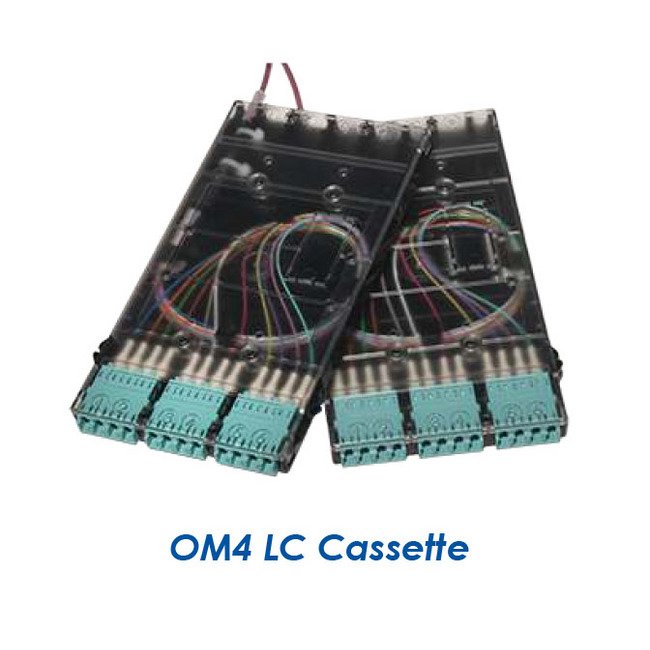

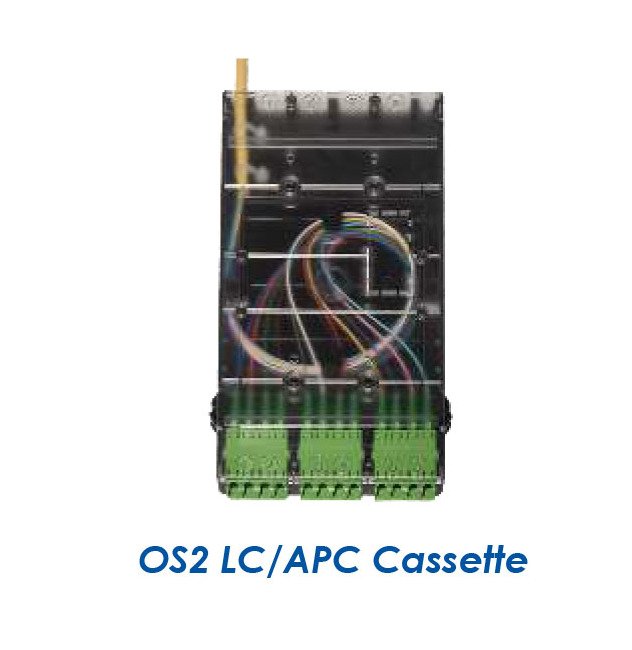

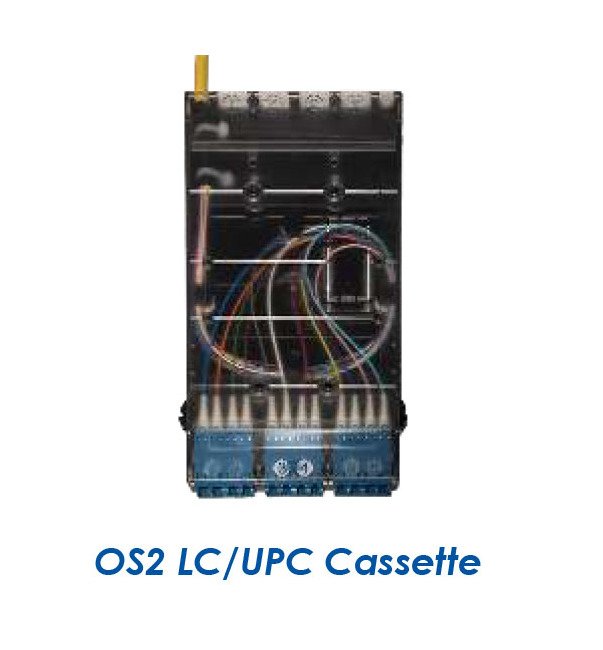

Xtreme+™ is Opticonx's FTTX cabling solution for building entrance facilities in the Data Center, Customer Premise, Head-End, or Colocation point.Xtreme+™ Cassettes are available with OS2, OS2 bend insensitive, OM3/OM4/OM5 fibers with 6 (SC only) or 12 fiber (SC and LC) capacity and include splice holder/organizer, splice sleeves, and factory terminated 250 µm pigtails 1.5 meters long. They are available with SC or LC connectors/adapters in UPC or APC polish.Xtreme+™ Cassettes for splicing provide superior protection, strain relief, and fiber routing to individual fibers in an enclosed cassette with a see-through cover for easy fiber mapping and identification. They can be installed from the front or rear of the panel enclosure and virtually eliminate panel dress out and the associated risk of damage to individual fibers and connectors during installation.Xtreme+™ Splice Cassettes can be mounted in any Opticonx patch panel or housing and can be made LGX compatible with optional LGX mounting brackets.
General Specifications Front Adapter Color
Aqua (OM3, OM4) | Blue Ultra-Physical Contact (UPC) | Green Angled Physical Contact (APC)
General Specifications Front Adapter Type
Shuttered LC
General Specifications Polarity
Method A
General Specifications Port Count Per Cassette
6
Note
Made in the USA.
Optical Specifications Multimode Insertion Loss
< -0.25 dB
Optical Specifications Singlemode Angled Physical Contact Apc In
< - 0.50 dB
Optical Specifications Singlemode Angled Physical Contact Apc Re
< - 0.65 dB
Optical Specifications Singlemode Ultra Physical Contact Upc Ins
< - 0.35 dB
Optical Specifications Singlemode Ultra Physical Contact Upc Ref
< - 0.55 dB
Ordering Information Cable Type
Micro Distribution | Ribbon
Ordering Information Connectoradapter Type
LC Multimode | LC Singlemode APC | LC Singlemode OS2
Ordering Information Fiber Count
96 (Ribbon cable only.) | 144 (Ribbon cable only.) | 192 (Ribbon cable only.) | 288 (Ribbon cable only.) | 12 | 24 | 36 | 48 | 72
Ordering Information Fiber Type
Singlemode OS2 | Singlemode BI OS2 | OM4 Magenta | OM3 | OM4 | OM5
Ordering Information Length
5 Meter Increments
