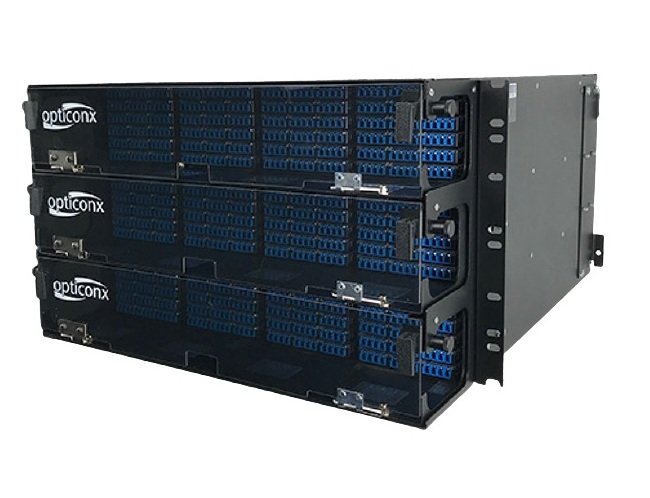

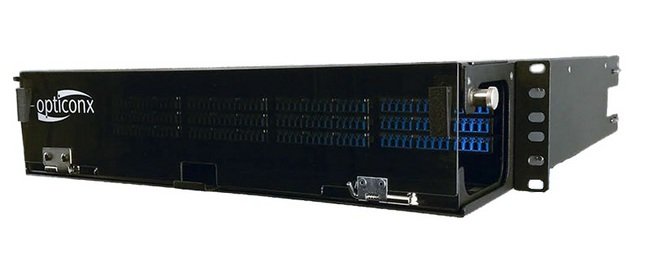

XD is a pre-terminated solution panel from Opticonx, the worldwide leader in data center fiber cabling. XD provides the highest density in the industry. XD can be configured with different connector types, cable types and any pigtail length for a custom solution for your data center, SAN/LAN or central office.Opticonx XD High Density Ready-to-Splice Fiber Panel is a 2, 4 or 6U fiber panel loaded with LC pigtails loaded into Xtreme+™ cassettes routed to splice trays. The 6U panel features 3 slide-out shelves, each of which house 288 fibers in Xtreme+™ cassettes to manage, protect and store individual fibers which are broken out into 250 µm or 200 µm ribbon fiber.
Product Specifications
Additional Information
6912 Fibers in 48UHigh Density Fiber Deployments Made EasyPerfect for Hyperscale Data Center AccessModular Configurable Solution Available In 2U/4U/6U
Note
Made in the USA.
Note For Ordering Information
Other standard and custom configurations are available.
Optical Specifications Singlemode Angled Physical Contact Apc Re
<- 0.65 dB
Optical Specifications Singlemode Ultra Physical Contact Upc Ins
<- 0.35 dB
Optical Specifications Singlemode Ultra Physical Contact Upc Ref
<- 0.55 dB
Ordering Information Fiber Density
576
Ordering Information Panel Size
4 Rack Unit (RU)
Physical Specifications Depth
22 in
Physical Specifications Height
7.0 in
Physical Specifications Weight
56 lb
Physical Specifications Width Without Brackets
17.125 in
Slide Out Shelves

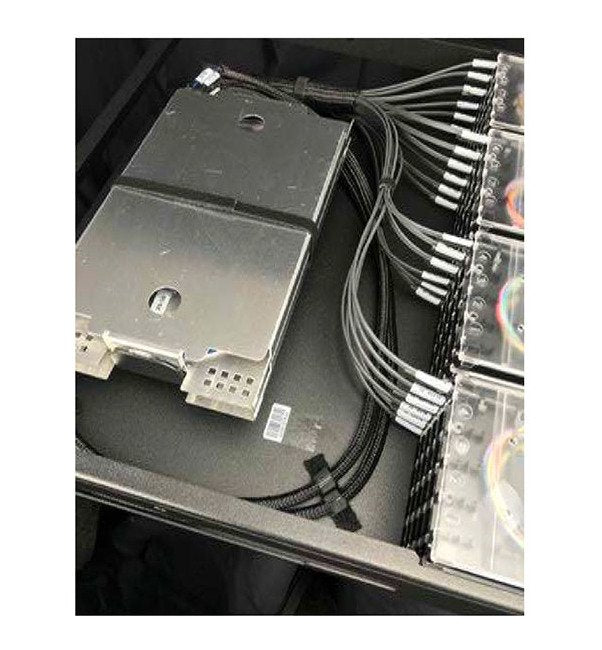

The XD Series features slide out shelves that make accessing the fiber jumpers and splice trays easy. Each shelf houses 288 fibers and its own splice trays. The shelves have positive stops for jumper management, cassette access and splice tray access.
Why Should You Buy From Opticonx
Opticonx manufactures a world class product with industry best lead timesAll products are proudly made in the USAOpticonx solutions meet and exceed our client’s expectationsFront and back accessScalable and modular solutionsSupports LC and MTP/MPO applications
Xtreme

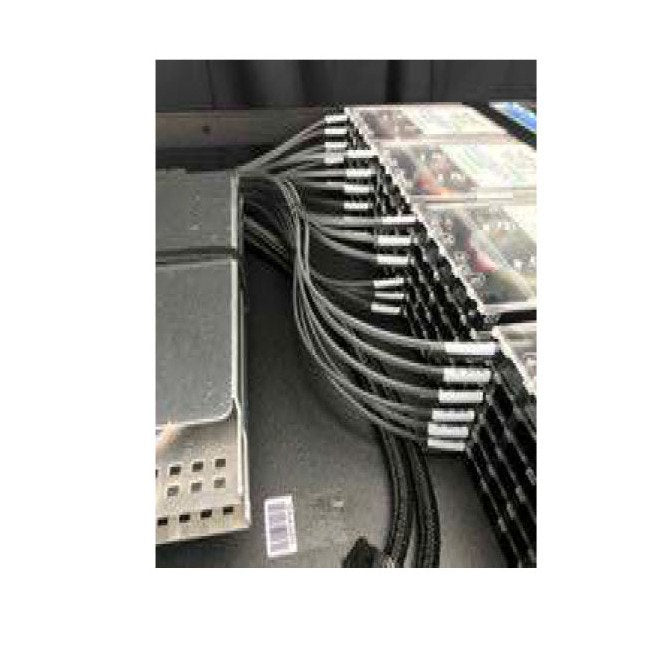

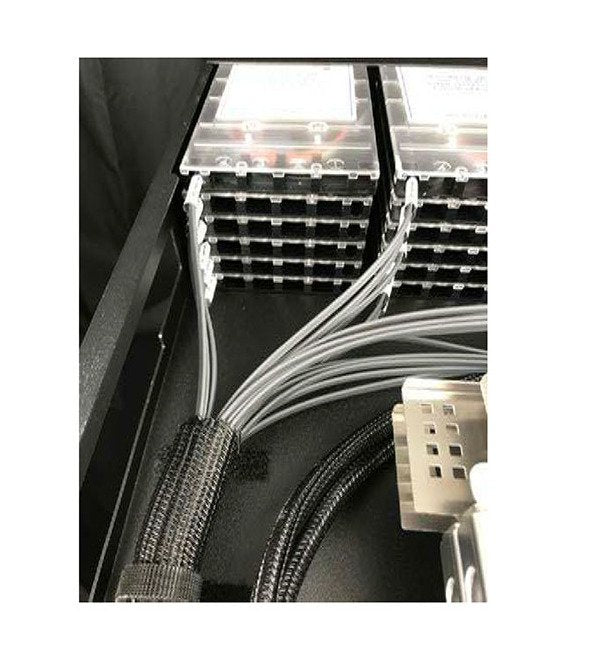

The ribbon fanouts are housed within the Xtreme+™ series fiber cassettes. The cassettes feature built in cable management which eliminates the need to manage 900 µm fibers within the patch panel. The cassettes are removable for maintenance and service, and aid in fiber identification. Dust-shuttered, VFL compatible LC adapters eliminate the need for dust caps and make fiber identification by visible laser source easy.
