Xtreme Low Loss (XL) Type OM5 4-12 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) to 6-8 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) Conversion Module
Xtreme Low Loss (XL) Type OM5 4-12 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) to 6-8 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) Conversion Module
SKU:XTR-dec5a9
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Xtreme Low Loss (XL) Type OM5 4-12 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) to 6-8 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) Conversion Module
$49.99
Quantity: 1
Claim Your Seller Account
Xtreme Low Loss (XL) Type OM5 4-12 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) to 6-8 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) Conversion Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
When used in parallel applications that utilize 8 fibers (4 TX and 4 RX lanes), conventional 12 fiber MTP®/MPO cables waste 1/3rd of the fibers in the cable plant. To overcome this, Opticonx recommends the use of Xtreme12 Conversion Modules to eliminate wasted fibers.40Gbs Ethernet (40GBASE-SR4) and 100Gbs Ethernet (100GBASE-SR4) use 8 fibers per channel.The MTP® interface uses the 1st four fibers to transmit and the last four fibers to receive. The middle four fibers are not utilized.12-fiber MTP® leaves 1/3 of the fibers dark. The Xtreme12 2x3 Conversion Module converts the signal from 3 4-channel transceivers to two 12-fiber trunks, achieving 100% utilization of a 12-fiber network.
Product Specifications
Additional Information

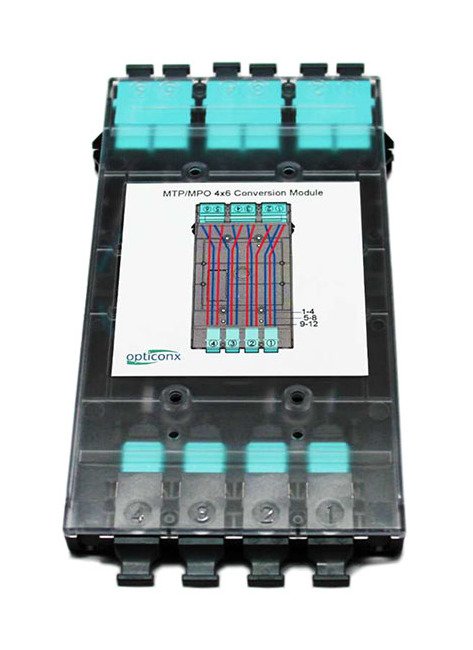

A denser solution for 12-fiber networks is a 4 x 6 Conversion Module for converting the signal from 6 4-channel transceivers to 4 12-fiber trunks. Conversion Modules for 24-fiber networks convert 1 24-fiber MTP to 3 8-fiber MTPs®. MTP is a Registered Trademark of USCONEC.
Note
Made in the USA.
Ordering Information Conversion Module
4-12 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M) to 6-8 Fiber Male Multi-Fiber Termination Push-On (MTP®) (M)
Ordering Information Fiber Type
OM5
Ordering Information Loss Type
Xtreme Low Loss (XL)
