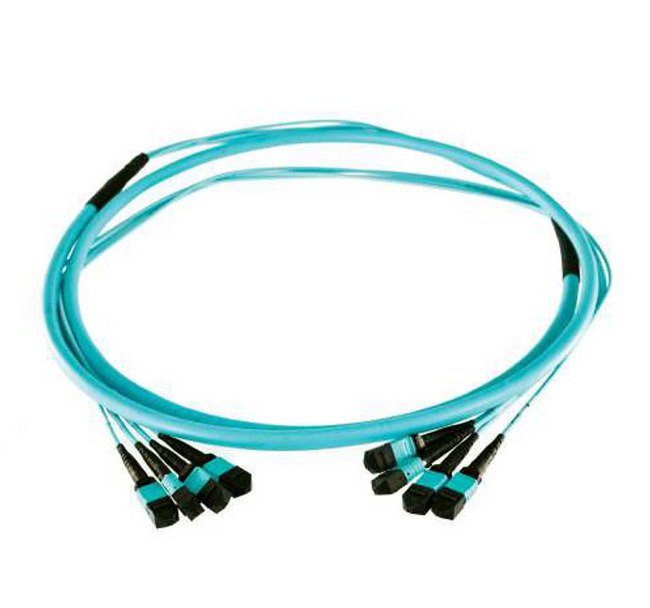

• Xtreme8™ and Xtreme12™ Multi-Fiber Termination Push-On (MTP®) Trunk Cables - Image 1
1 1
Opticonx →

Xtreme8™ and Xtreme12™ Multi-Fiber Termination Push-On (MTP®) Trunk Cables

Xtreme8™ and Xtreme12™ Multi-Fiber Termination Push-On (MTP®) Trunk Cables

XTR-7c1470

N/A

$49.99
$49.99
Sale

Initiate Order

Xtreme8™ and Xtreme12™ Multi-Fiber Termination Push-On (MTP®) Trunk Cables

Xtreme8™ and Xtreme12™ Multi-Fiber Termination Push-On (MTP®) Trunk Cables

$49.99

Quantity: 1

Claim Your Seller Account

Xtreme8™ and Xtreme12™ Multi-Fiber Termination Push-On (MTP®) Trunk Cables

Xtreme8™ and Xtreme12™ Multi-Fiber Termination Push-On (MTP®) Trunk Cables

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Xtreme8™ Trunks are factory terminated with 8 fiber MTP® connectors for interconnecting with Xtreme8™ LC to MTP® modules and harnesses.

Product Specifications

Features
Low insertion loss - Better link loss performance for longer distances and more interconnect pointsBend insensitive fibers - Standard for OM3/OM4/OM5 fibers, optional for OS2
General Specifications Connector
8 Fiber Multi-Fiber Termination Push-On (MTP®) | Non-Pinned 8 Fiber Multi-Fiber Termination Push-On (MTP Elite®) | 12 Fiber Multi-Fiber Termination Push-On (MTP®) | Non-Pinned 12 Fiber Multi-Fiber Termination Push-On (MTP Elite®)
General Specifications Connector Color For Om3 And Om4 Multimode
Aqua
General Specifications Connector Color For Os2 Multimode Fiber
Green
General Specifications Fiber Count
8 | 12 | 16 | 24 | 32 | 36 | 48 | 72 | 96 | 144
General Specifications Polarity
Method A | Method B | Method C
Note
MTP® and MTP Elite® are registered trademarks of USConecMade in the USA.
Optical Specifications 10g And 40100g Ethernet Transmission Dist
80K/40K m
Optical Specifications Loss Type
Maximum Insertion Loss
Optical Specifications Low Loss Ll For Om3 Om4 And Om5 Multimode
0.50 dB
Optical Specifications Low Loss Ll For Os2 Multimode Fiber
1.00 dB
Optical Specifications Transmission Loss For Om3 Om4 And Om5 Mul
1.0 dB/km
Optical Specifications Transmission Loss For Os2 Multimode Fiber
0.40 dB/km
Optical Specifications Xtreme Low Loss Xl For Om3 Om4 And Om5 Mu
0.35 dB
Optical Specifications Xtreme Low Loss Xl For Os2 Multimode Fibe
0.60 dB
Ordering Information Fiber Type
OS2 | OM3 | OM4 | OM5
Ordering Information Length
Feet | Meters
Ordering Information Method
A | B | C
Ordering Information Performance
Low Loss (LL) | Xtreme Low Loss (XL)
Ordering Information Pulling Eye Kit
No Pek | 1 Pek | 2 Peks
