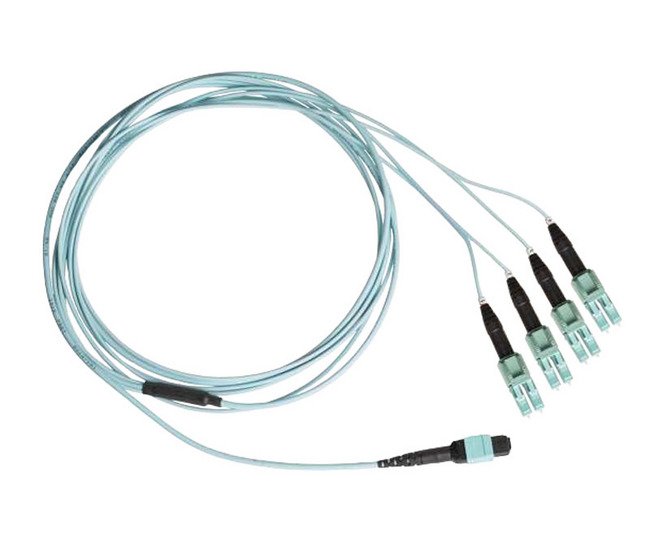

• Xtreme8™ and Xtreme12™ Quad Small Form-Factor Pluggable (QSFP) to Enhanced Small Form-Factor Pluggable (SFP+) Data Center Harnesses - Image 1
1 1
Opticonx →

Xtreme8™ and Xtreme12™ Quad Small Form-Factor Pluggable (QSFP) to Enhanced Small Form-Factor Pluggable (SFP+) Data Center Harnesses

Xtreme8™ and Xtreme12™ Quad Small Form-Factor Pluggable (QSFP) to Enhanced Small Form-Factor Pluggable (SFP+) Data Center Harnesses

XTR-4ba82a

N/A

$49.99
$49.99
Sale

Initiate Order

Xtreme8™ and Xtreme12™ Quad Small Form-Factor Pluggable (QSFP) to Enhanced Small Form-Factor Pluggable (SFP+) Data Center Harnesses

Xtreme8™ and Xtreme12™ Quad Small Form-Factor Pluggable (QSFP) to Enhanced Small Form-Factor Pluggable (SFP+) Data Center Harnesses

$49.99

Quantity: 1

Claim Your Seller Account

Xtreme8™ and Xtreme12™ Quad Small Form-Factor Pluggable (QSFP) to Enhanced Small Form-Factor Pluggable (SFP+) Data Center Harnesses

Xtreme8™ and Xtreme12™ Quad Small Form-Factor Pluggable (QSFP) to Enhanced Small Form-Factor Pluggable (SFP+) Data Center Harnesses

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Xtreme8™ and Xtreme12™ harnesses interconnect end point switches and storage devices with cabling trunks.

Product Specifications

Features
Low Insertion Loss - Better link loss performance for longer distances and more interconnect pointsUniboot Polarity Switchable Connectors - Field switchable, tool-less connectorBend Insensitive Fibers - Standard for OM3/OM4/OM5 fibers, optional for OS2
General Specifications Enhanced Small Form Factor Pluggable Sfp
Duplex Lucent Connector (LC) Uniboot
General Specifications Fiber Count
12
General Specifications Polarity
Method A (Straight Through)
General Specifications Quad Small Form Factor Pluggable Qsfp Con
Pinned Multi-Fiber Termination Push-On (MTP®)
Note
MTP® and MTP Elite® are registered trademarks of USConecMade in the USA.
Optical Specifications Loss Type
Maximum Harness Insertion Loss
Optical Specifications Low Loss Ll For Om3 Om4 And Om5 Multimode
0.50 dB
Optical Specifications Low Loss Ll For Os2 Multimode Fiber
1.00 dB
Optical Specifications Xtreme Low Loss Xl For Om3 Om4 And Om5 Mu
0.35 dB
Optical Specifications Xtreme Low Loss Xl For Os2 Multimode Fibe
0.60 dB
Ordering Information Fiber Type
OS2 | OM3 | OM4 | OM5
Ordering Information Gender
Male (M) | Female (F)
Ordering Information Length
Feet | Meters
Ordering Information Overall Breakout Length
12 | 18 | 24 | 36 | 48
Ordering Information Performance
Low Loss (LL) | Xtreme Low Loss (XL)
Ordering Information Pinout
A | U
Ordering Information Stagger
None | Stagger Low to High | Stagger High to Low
