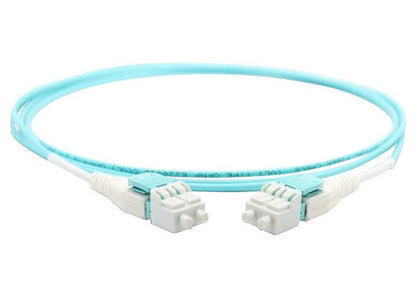

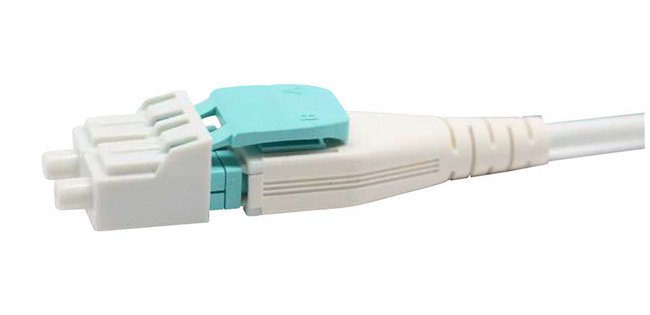

Xtreme8™ and Xtreme12™ Uniboot Lucent Connector (LC) Duplex Jumpers
Xtreme8™ and Xtreme12™ Uniboot Lucent Connector (LC) Duplex Jumpers
SKU:XTR-ff2e90
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Xtreme8™ and Xtreme12™ Uniboot Lucent Connector (LC) Duplex Jumpers
$49.99
Quantity: 1
Claim Your Seller Account
Xtreme8™ and Xtreme12™ Uniboot Lucent Connector (LC) Duplex Jumpers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Uniboot Polarity Switchable Patch Cords feature high density, small form factor LC connectors mated to 2.0mm round duplex cable. They are used to connect switches or network devices in fiber networks directly or interconnect structured cabling systems in a fiber network. Polarity changes can be made in the field quickly, without the use of tools, to the correct fiber mapping polarity.
Product Specifications
Multimode Connector Specifications Maximum Multimode Low Loss Ll
0.25 dB
Multimode Connector Specifications Minimum Multimode Low Loss Ll
> -25 dB
Multimode Connector Specifications Multimode Low Loss Ll Cable R
20 lb | 88 N
Multimode Connector Specifications Multimode Low Loss Ll Durabil
500 Matings
Multimode Connector Specifications Multimode Low Loss Ll Operati
-40 to 75 ºC
Multimode Connector Specifications Multimode Low Loss Ll Repeata
< 0.20 dB
Multimode Connector Specifications Multimode Low Loss Ll Standar
Restriction of Hazardous Substances (RoHS) Compliant
Note
Made in the USA.
Ordering Information Connector
Multimode | Singlemode
Ordering Information Fiber Type
OS2 | OM3 | OM4 | OM5
Ordering Information Length
Feet | Meters
Ordering Information Performance
Low Loss (LL) | Xtreme Low Loss (XL)
Singlemode Connector Specifications Singlemode Low Loss Ll Cable
20 lb | 88 N
Singlemode Connector Specifications Singlemode Low Loss Ll Durab
500 Matings
Singlemode Connector Specifications Singlemode Low Loss Ll Inser
0.35 dB
Singlemode Connector Specifications Singlemode Low Loss Ll Opera
-40 to 75 ºC
Singlemode Connector Specifications Singlemode Low Loss Ll Repea
< 0.20 dB
Singlemode Connector Specifications Singlemode Low Loss Ll Stand
Restriction of Hazardous Substances (RoHS) Compliant
Singlemode Connector Specifications Ultra Physical Contact Upc C
> -55 dB
