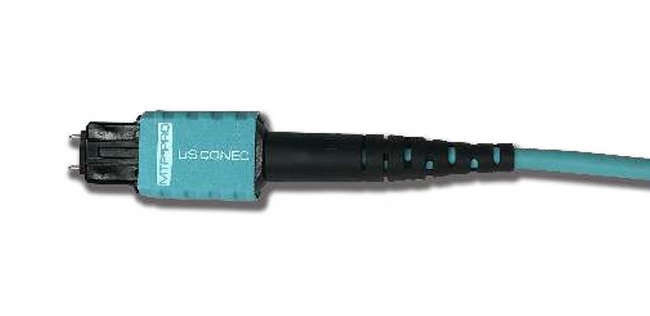

XtremePRO™ 12 Fiber OM3, OM4, OM5, and OS2 Multi-Fiber Termination Push-On (MTP®) Jumper

XtremePRO™ 12 Fiber OM3, OM4, OM5, and OS2 Multi-Fiber Termination Push-On (MTP®) Jumper

MUL-4d102e

N/A

$49.99
$49.99
Sale

Initiate Order

XtremePRO™ 12 Fiber OM3, OM4, OM5, and OS2 Multi-Fiber Termination Push-On (MTP®) Jumper

XtremePRO™ 12 Fiber OM3, OM4, OM5, and OS2 Multi-Fiber Termination Push-On (MTP®) Jumper

$49.99

Quantity: 1

Claim Your Seller Account

XtremePRO™ 12 Fiber OM3, OM4, OM5, and OS2 Multi-Fiber Termination Push-On (MTP®) Jumper

XtremePRO™ 12 Fiber OM3, OM4, OM5, and OS2 Multi-Fiber Termination Push-On (MTP®) Jumper

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

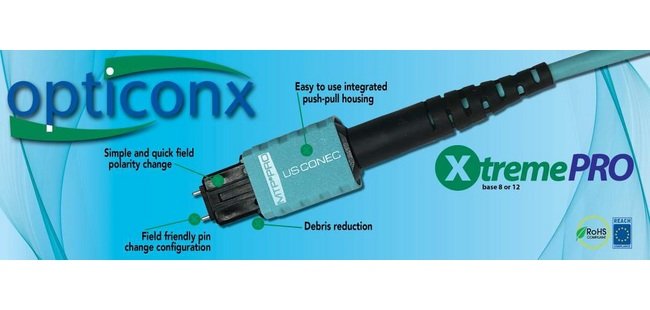

XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration. It’s all the performance you’ve come to expect from the MTP connector with enhanced performance and features.

Product Specifications

Features
XtremePRO™ MTP jumpers, trunks and harnesses are factory terminated with a 12 fiber Elite MTP® Pro (MTP® Pro and MTP® Elite are registered trademarks of USCONEC) connector.The connector is available in aqua (OM3, OM4) or green (Single Mode).XtremePRO™ can be used in 8 or 12 fiber networks.Xtreme Low Insertion LossBetter link performance for longer distances and more interconnect pointsBend Insensitive FibersStandard OM3 or OM4 fibers (aqua jacket), OM5 (lime green jacket) or OS2 Bend-insensitive fibers (yellow jacket)
General Specifications Connector Color
Aqua OM4 | Green Angled Physical Contact (APC) Single Mode | Green OM5
General Specifications Connector Type
12 Fiber MTP Elite Non-Pinned
General Specifications Fiber Count
12
Note
Made in the USA.
Optical Specifications Loss Type
Insertion Loss (IL)
Optical Specifications Xtreme Low Loss Xl
≤ 0.35 dB
Xtremepro Jumper Ordering Information Fiber Type
OS2 | OM3 | OM4 | OM5
Xtremepro Jumper Ordering Information Length
Feet | Meters
Xtremepro Jumper Ordering Information Performance
Xtreme Low Loss (Elite)
Xtremepro Jumper Ordering Information Starting Pin Configuration
MTP(f)/MTP(f) | MTP(m)/MTP(f) | MTP(m)/MTP(m)
Xtremepro Jumper Ordering Information Starting Polarity
A | B
