Yellow 3-Pin Wire Mount Plug Connector
Yellow 3-Pin Wire Mount Plug Connector
SKU:PRO-9cf77f
Reliable Yellow 3-Pin Wire Mount Plug Connector for 26-24 AWG wires, ~250V, 3.0A. Compliant & durable.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Yellow 3-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Yellow 3-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

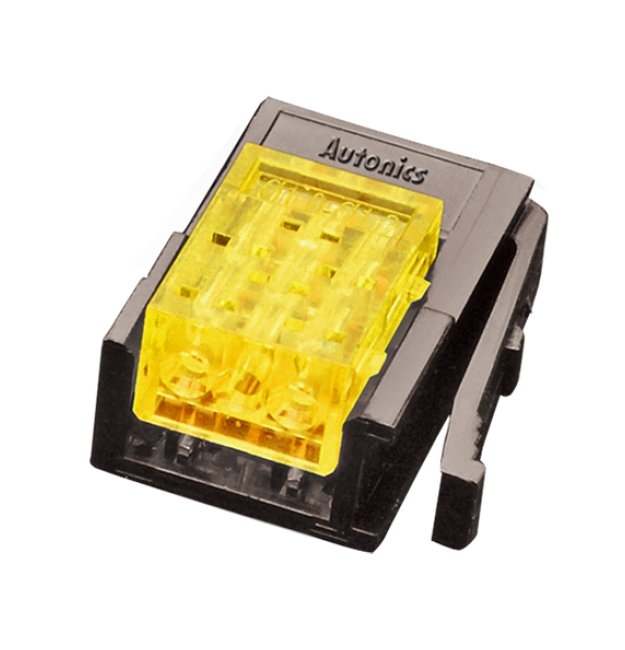

The Yellow 3-Pin Wire Mount Plug Connector is a high-quality sensor connector designed for maximum alternating current/direct current voltage of ~250V. With a terminal material of C5210 coated in gold (0.2 μm) and a Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) body, it ensures reliable conductivity and durability. This connector meets stringent standards with a maximum rated current of 3.0A, suitable for AWG24 to 26 wires. Its Polycarbonate (UL94-V0) case and vibrant yellow color make it easily identifiable and compliant with industry-specific certifications, ensuring top-notch performance in institutional settings.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Yellow
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Yellow
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
3
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
