Yellow 4-Pin Wire Mount Plug Connector 26-24 AWG
Yellow 4-Pin Wire Mount Plug Connector 26-24 AWG
SKU:PRO-32de1a
High-quality Yellow 4-Pin Wire Mount Plug Connector for secure and efficient electrical connections. Rated for 3.0 A and ~250 V. Gold-coated terminal material for reliable conductivity.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Yellow 4-Pin Wire Mount Plug Connector 26-24 AWG
$2.10
Quantity: 1
Claim Your Seller Account
Yellow 4-Pin Wire Mount Plug Connector 26-24 AWG
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

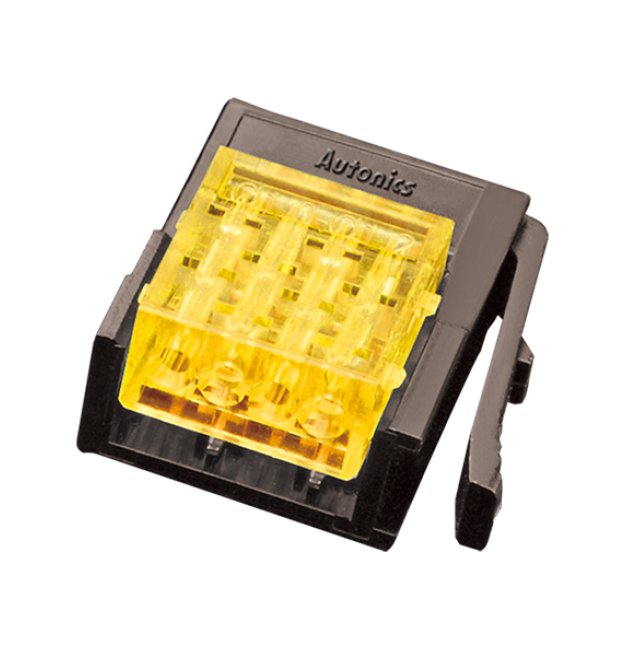

The Yellow 4-Pin Wire Mount Plug Connector is a high-quality solution for secure connections in electrical applications. This connector features a Terminal Material of C5210 with a gold coating of 0.2 μm, ensuring reliable conductivity. The Body Material is made of Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) meeting UL94V-0 standards for safety. With a Maximum Rated Current of 3.0 A and a Maximum Alternating Current/ Direct Current Voltage of ~250 V, this connector is designed for efficiency and durability.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Yellow
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Yellow
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
