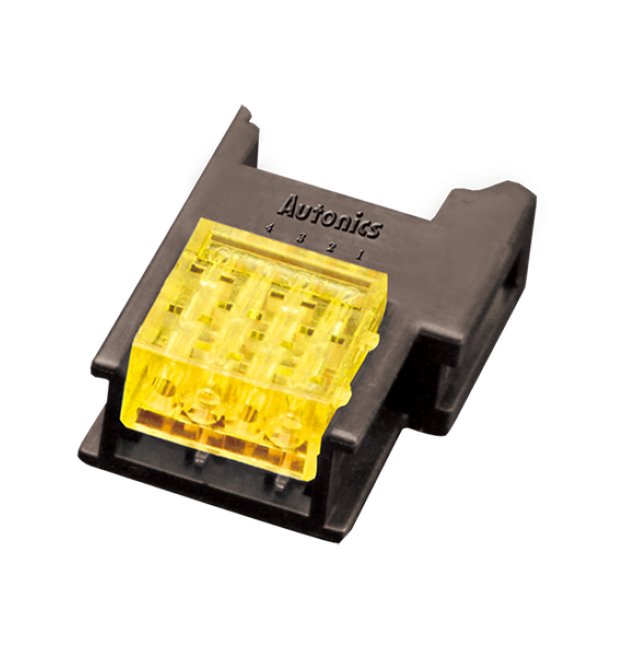

Yellow 4-Pin Wire Mount Socket Connector

Yellow 4-Pin Wire Mount Socket Connector

PRO-a9cba3

Reliable Yellow 4-Pin Wire Mount Socket Connector for precise electronic connections.

$2.10
$2.10
Sale

Initiate Order

Yellow 4-Pin Wire Mount Socket Connector

Yellow 4-Pin Wire Mount Socket Connector

$2.10

Quantity: 1

Claim Your Seller Account

Yellow 4-Pin Wire Mount Socket Connector

Yellow 4-Pin Wire Mount Socket Connector

$2.10

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Yellow 4-Pin Wire Mount Socket Connector is a high-quality sensor connector designed for precise applications. With a maximum voltage rating of ~250V and a maximum current of 3.0A, this connector ensures reliable connectivity. Crafted with C5210 gold-plated terminals and Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) body material, it meets stringent industry standards for durability and performance. Suitable for 26-24 AWG wires with a cross-sectional area of 0.13 to 0.21 mm², this connector guarantees secure connections for various electronic components.

Product Specifications

Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Yellow
Specifications Connector Type
Wire Mount Socket
Specifications Cover Color
Yellow
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
