Yellow A Beaded Indicating Silica Gel Desiccant
Yellow A Beaded Indicating Silica Gel Desiccant
SKU:CHE-e338b6
Transo-Pharm's Yellow A Beaded Indicating Silica Gel Desiccant—precisely control moisture in pharmaceutical, laboratory, and industrial applications. Compliant with MIL-D-3716-Type IV.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Yellow A Beaded Indicating Silica Gel Desiccant
$49.99
Quantity: 1
Claim Your Seller Account
Yellow A Beaded Indicating Silica Gel Desiccant
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Transo-Pharm's Yellow A Beaded Indicating Silica Gel Desiccant, with a particle size range of 1.0 to 3.0 mm, offers high adsorption capacities at various humidity levels. Compliant with MIL-D-3716-Type IV, this yellow silica gel is ideal for pharmaceutical, laboratory, and industrial applications. With a specific surface area of 750 m²/g and the ability to absorb up to 35.3 gm of H2O per 100 gm of desiccant at 80% RH, this product ensures effective moisture control and preservation. Available in bag, drum, and super sack packaging options, it meets stringent industry standards for utmost reliability.
Product Specifications
Key Features And Benefits 0

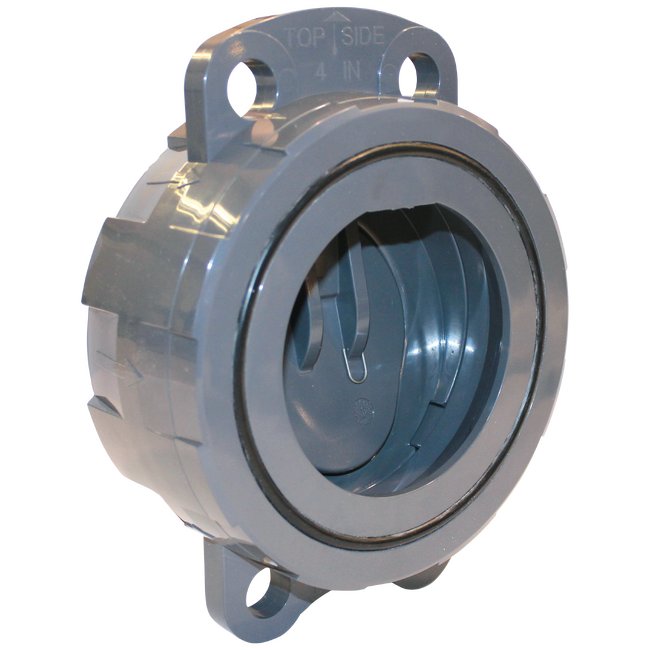

Robust Wide Pattern Body in PVC â No Need for Spacers or specialty flanges. One-Piece Disc and Shaft Design Designed for ANSI150 and PN10 Flanges High Cv Rating Equal to Metal Check Valves Lower Closing Pressure Than Swing Check Valves Integral Bolt Eyes for Ease of Installation for Large Sizes Can be Installed in Vertical or Horizontal Position FPM or EPDM Gasket and Face Seal Pressure Rated to 150 PSI / PN10 In All Sizes
Materials 0
PVC per ASTM D1784 Cell Class 12454 CPVC per ASTM D1784 Cell Class 23447 GFPP per ASTM D4101 Cell Class 85580 FPM and EPDM Gasket and Disc Seals
Options 0
316 Stainless Steel or Hastelloy® Disc Spring Return
Specifications A
4.93 in | 125.22 mm
Specifications B
0.75 in | 19.05 mm
Specifications C
0.95 in | 24.13 mm
Specifications D
10.88 in | 276.35 mm
Specifications E
7.62 in | 193.55 mm
Specifications F
13.38 in | 339.85 mm
Specifications Flow Capacity Cv
1225
Specifications G
11.75 in | 298.45 mm
Specifications H
22.5 º
Specifications J
45 º
Specifications Material
CPVC
Specifications Opening Pressure Estimated
1 psi
Specifications O Rings Seals
EPDM
Specifications Pressure Rating
150 psi at 70°F Non-Shock
Specifications Sealing Pressure With Or Without Spring
3 psi
Specifications Size
8"
Specifications Spring Material
No Spring
Specifications Weight
6.38 kg | 14.05 lb
Applications 0
Water and Wastewater Treatment Water / Theme Parks Chemical Processing Aquatic and Animal Life Support Systems Marine and Corrosive Environments Mining Landfills
