The Yellow All-Weather Inflation Hose is a high-quality hose assembly designed to meet the demanding needs of both consumers and institutions alike. Featuring a 3/8" inner diameter and 32' length, this hose is ideal for a variety of applications. Equipped with a shut-off and pressure relief valve for safety and ease of use, it ensures reliable performance in different environments. The vibrant yellow color adds visibility and easy identification. With official use in 161-5 Series High Pressure Heavy Duty Bags, this hose is built to withstand heavy-duty usage. Trust Petersen® for durable and reliable hose solutions.

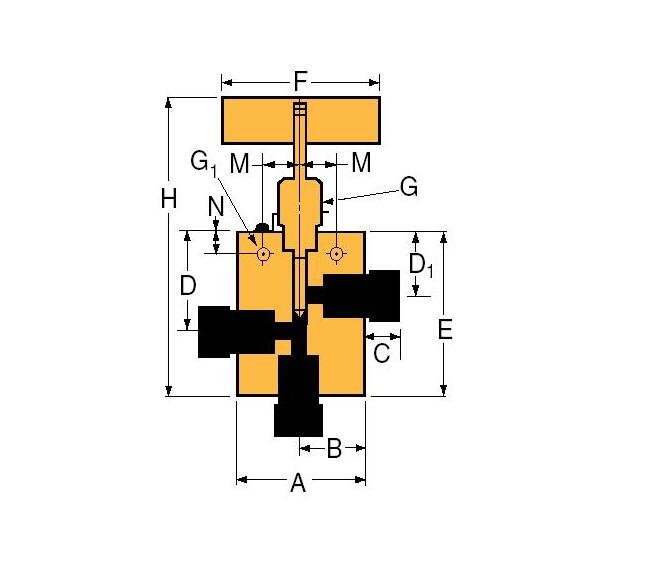

Product Specifications
Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.75 in | 44.45 mm
Specifications D Height
2.38 in | 60.45 mm
Specifications E Height
3.62 in | 91.95 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.70 in | 170.18 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.90
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
