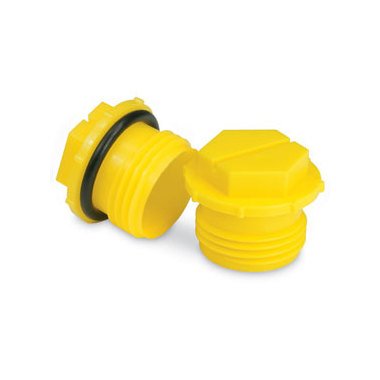

Yellow BL Series UNF Threaded Plugs with O-Ring Seal

Name: Yellow BL Series UNF Threaded Plugs with O-Ring Seal
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-6a1628
Price: 14.99 USD
Availability: OutOfStock

SKU:PLU-6a1628

Yellow BL Series UNF Threaded Plugs with O-Ring Seal, Superior Leakage Protection

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

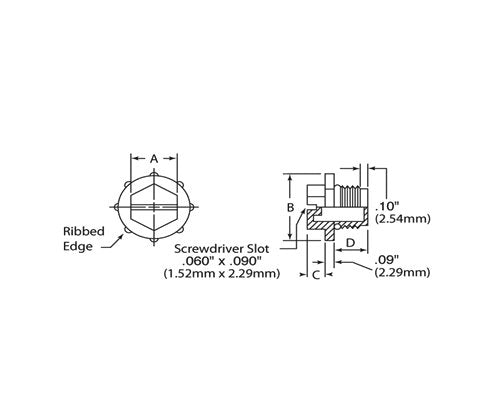

The Yellow BL Series UNF Standard Threaded Plugs with optional O-ring seal offer superior leakage protection and easy application. With dimensions A-D of 1.000 in, 1.500 in, 0.300 in, and 0.700 in respectively, and made of Polypropylene material ensure durability. Compliant with Federal/DoD procurement standards and industry certifications for reliable performance in diverse applications.

Product Specifications

Specifications Added Feature

With-O-Ring

Specifications Color

Yellow

Specifications Dimension A

1.000 in | 25.400 mm

Specifications Dimension B

1.500 in | 38.100 mm

Specifications Dimension C

0.300 in | 7.620 mm

Specifications Dimension D

0.700 in | 17.780 mm

Specifications Material

Polypropylene

Specifications To Plug Standard Thread Size

1 3/16"-12

Yellow BL Series UNF Threaded Plugs with O-Ring Seal
