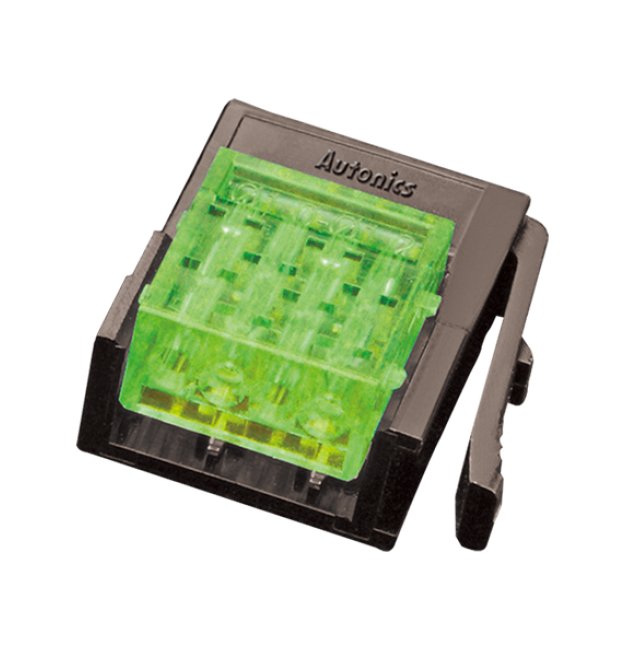

Yellow-Green 4-Pin Wire Mount Plug Connector
Yellow-Green 4-Pin Wire Mount Plug Connector
SKU:PRO-c72be2
Reliable Yellow-Green 4-Pin Connector for up to 250V. Durable and secure design for 30-28 AWG wires.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Yellow-Green 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Yellow-Green 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Yellow-Green 4-Pin Wire Mount Plug Connector is a high-quality solution for secure sensor connections. With a voltage rating of up to 250V, this connector features C5210 gold-plated terminals for reliable conductivity. Constructed with Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) materials, it ensures durability. Ideal for 30-28 AWG wires with a cross-sectional area of 0.05 to 0.08 mm², meeting stringent institutional standards for performance and safety.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Yellow-Green
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Yellow-Green
Specifications Cover Diameter
0.8 to 1.0 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.05 to 0.08 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.05 to 0.08 mm²
Specifications Wire Size
30-28 AWG
