Yellow Knurled Cap Large Knob, Spring-loaded - PEM C.A.P.S. - Metric
Yellow Knurled Cap Large Knob, Spring-loaded - PEM C.A.P.S. - Metric
SKU:PEM-2bf5e9
Enhance access panel screws with Yellow Knurled Cap Large Knob, M4 x 0.7 Threads, PC/ABS Knob, Heat-Treated Steel. Compliant with ANSI/ASME B1.13M, HRB 80 or HB 150 hardness.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Yellow Knurled Cap Large Knob, Spring-loaded - PEM C.A.P.S. - Metric
$24.99
Quantity: 1
Claim Your Seller Account
Yellow Knurled Cap Large Knob, Spring-loaded - PEM C.A.P.S. - Metric
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your access panel screws with the Yellow Knurled Cap Large Knob, Spring-loaded from PEM®. This high-quality screw features M4 x 0.7 thread size, a durable PC/ABS Knob in yellow color, and materials like Heat-Treated Carbon Steel and 300 Series Stainless Steel. With bright nickel, zinc plated, and natural finish, it ensures both functionality and aesthetics. Compliant with ANSI/ASME B1.13M and industry standards for materials and finishes, making it ideal for metal sheets with hardness up to HRB 80 or HB 150.
Product Specifications

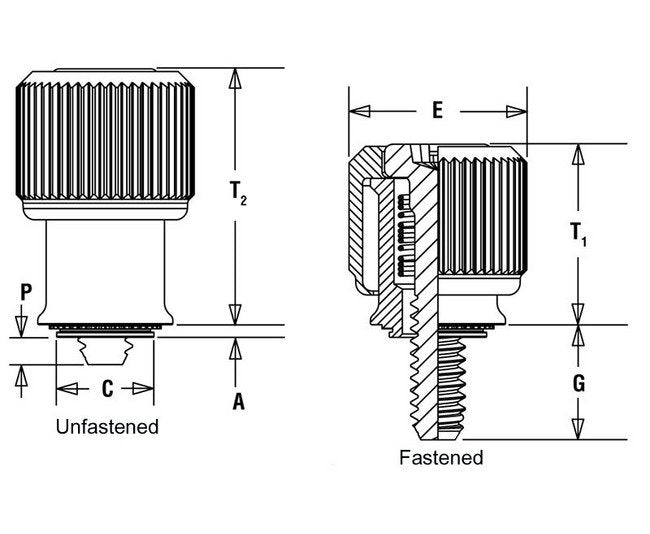

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
13.06 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications G 064
7.37 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications Knob Color
Yellow
Specifications Material Knob
PC/ABS (UL 94V-0, halogen-free)
Specifications Material Retainer
Heat-Treated Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Float
0.51 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
1.52 mm
Specifications Screw Length Code
1
Specifications T1 Nom
11.43 mm
Specifications T2 Nom
16.26 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Knurled Cap - PF11PM
