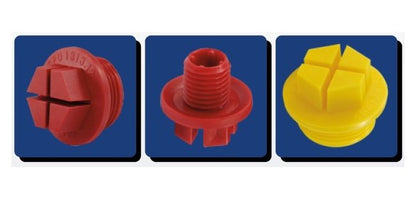

Yellow Nylon Sealing Plug for Unified/Straight Threads with Neoprene O-Ring

Name: Yellow Nylon Sealing Plug for Unified/Straight Threads with Neoprene O-Ring
Brand: MOCAP LLC
SKU: SEA-ce6b69
Price: 39.99 USD
Availability: OutOfStock

SKU:SEA-ce6b69

Protect Unified/Straight threads with Yellow Nylon Sealing Plugs featuring Neoprene O-Ring for a secure seal against moisture and dust.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Yellow Nylon Sealing Plug for Unified/Straight Threads by MOCAP offers superior protection for threaded ports and fittings. Constructed with high-quality nylon, these plugs resist hydraulic fluids, solvents, acids, and base alkalines. Featuring a sealing lip and Neoprene Rubber O-Ring, they ensure a secure seal against moisture, dust, and damage. Easy to install and remove manually or with tools, these plugs come in various sizes to fit different thread dimensions, meeting stringent industry standards for quality and reliability.

Product Specifications

Features 0

Our SPU Series Plugs are: Yellow Nylon (offers high resistance against hydraulic fluids, solvents, acids and base alkalines)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12Neoprene Rubber O-Ring

Manufacturing Notes 0

MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.

Specifications Box Quantity

1000

Specifications Color

Yellow

Specifications Flange Outer Diameter Dimension A

1.650 in | 41.9 mm

Specifications Length Dimension C

0.590 in | 15.0 mm

Specifications Material

Nylon

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

200

Specifications O Ring Material

Neoprene Rubber

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.590 in | 15.0 mm

Specifications To Fit Standard Thread Size

1 5/16-12

Yellow Nylon Sealing Plug for Unified/Straight Threads with Neoprene O-Ring
