Yellow Silicone Washer Pull Plug SWPP-562
Yellow Silicone Washer Pull Plug SWPP-562
SKU:SIL-7f58cc
High-quality Yellow Silicone Washer Pull Plug SWPP-562 for masking and plating, temperature rated up to 600°F/315°C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Yellow Silicone Washer Pull Plug SWPP-562
$29.99
Quantity: 1
Claim Your Seller Account
Yellow Silicone Washer Pull Plug SWPP-562
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Yellow Silicone Washer Pull Plug SWPP-562 is a high-quality masking solution designed for a wide range of industrial applications. With precise dimensions of 0.562 inches by 0.195 inches by 0.110 inches, and a temperature rating of 600°F/315°C, this plug is perfect for masking through holes with a grounding area. It can be inverted and pushed in to mask chamfered holes, and its color-coded design allows for easy identification and reusability. Ideal for use in powder coating, e-coating, wet painting, anodizing, and plating processes, this plug offers versatility and reliability in every application.

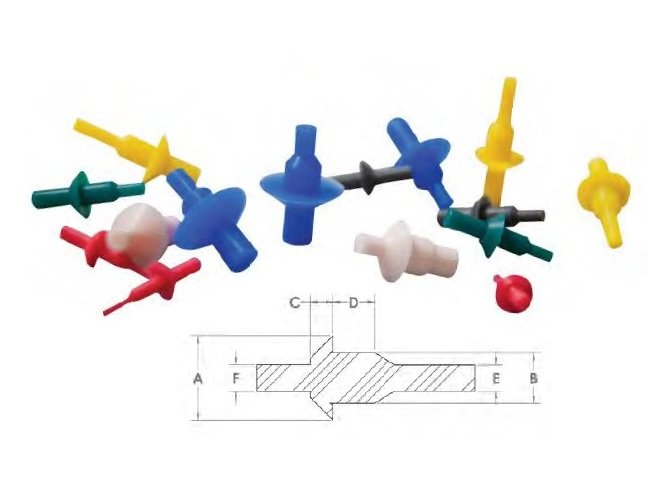

Product Specifications
Specifications Color
Yellow
Specifications Dimension A
0.562 Inch | 14.27 mm
Specifications Dimension B
0.195 Inch | 4.95 mm
Specifications Dimension C
0.110 Inch | 2.79 mm
Specifications Dimension D
0.390 Inch | 9.91 mm
Specifications Dimension E
0.110 Inch | 2.54 mm
Specifications Dimension F
0.160 Inch | 4.06 mm
Specifications Features
Temperature Rating 600 °F/315 °C Designed to Mask Through Holes with a Grounding Area Invert and Push-in to Mask Chamfered Holes Can be used in Threaded or Non-Threaded Masking Color Coded for Easy Identification and Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating
Specifications Quantitybag
250
