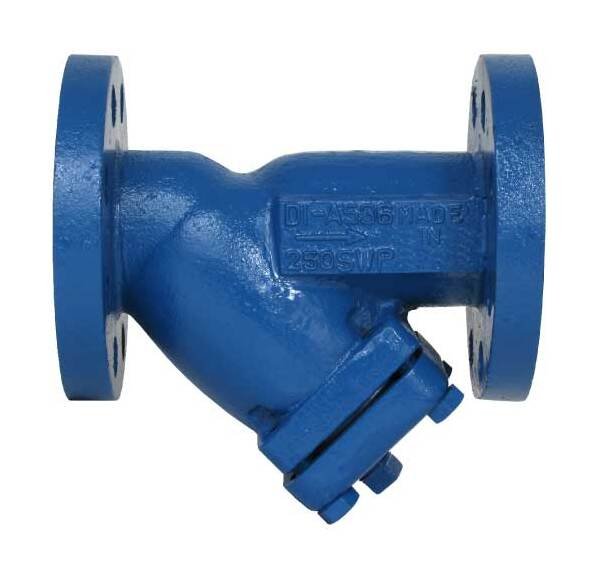

YF250 12 Inch Ductile Iron Flanged End Connections Cast Y Strainer
YF250 12 Inch Ductile Iron Flanged End Connections Cast Y Strainer
SKU:YST-43899f
Reliable YF250 12 Inch Ductile Iron Flanged Y Strainer by Sure Flow for efficient pipeline maintenance.
Regular price
$859.99
Regular price
Sale price
$859.99
Unit price
per
Initiate Order
YF250 12 Inch Ductile Iron Flanged End Connections Cast Y Strainer
$859.99
Quantity: 1
Claim Your Seller Account
YF250 12 Inch Ductile Iron Flanged End Connections Cast Y Strainer
$859.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The YF250 12 Inch Ductile Iron Class 250 Flanged End Connections Cast Y Strainer by Sure Flow is a robust solution designed for optimal flow efficiency. With a machined seat ensuring a perfect fit for the stainless steel screen, this strainer offers reliable performance. It includes a flanged blow-off cover, gasket & plug for easy maintenance. Suitable for vertical or horizontal pipelines, with a blow-off connection at the screen's lower end, this strainer excels in durability and functionality.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

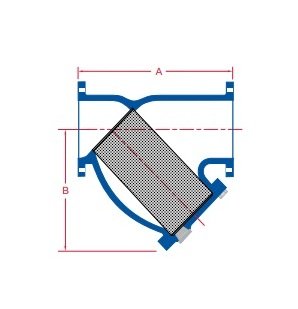

Dimensions Dimension A
32 in
Dimensions Dimension B
21 3/4 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
978 lb
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
