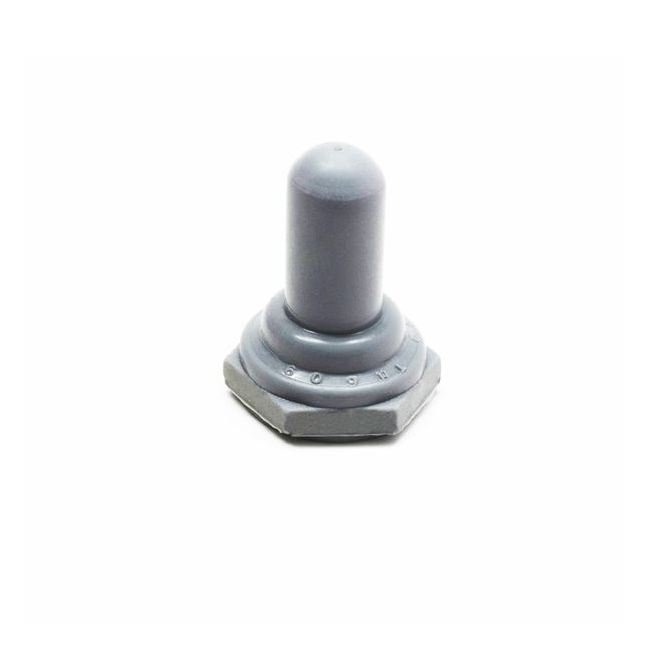

ZAGO M12 Thread Toggle Switch Boot
ZAGO M12 Thread Toggle Switch Boot
SKU:SWI-2cd198
Top-tier ZAGO M12 Toggle Switch Boot, silicone rubber, IP68, perfect for harsh conditions, aerospace, marine, military.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
ZAGO M12 Thread Toggle Switch Boot
$25.99
Quantity: 1
Claim Your Seller Account
ZAGO M12 Thread Toggle Switch Boot
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ZAGO M12 X 0.75 Toggle Switch Boot provides unbeatable protection in harsh environments. Made of high-quality silicone rubber conforming to A-A-59588, GR 62, this boot is resistant to fungus, acids, ozone, salt spray, and more. With an IP68 enclosure protection and a temperature range from -93 to +400 °F, it's ideal for aerospace, industrial, marine, medical, and military applications. Trust ZAGO for top-notch sealing solutions.
Product Specifications
Specifications Applications
Aerospace | For Indoor/Outdoor Use to protect against exposure to harsh environments | Industrial Equipment | Marine | Medical Equipment | Military
Specifications Base Width
0.625 in
Specifications Boot Height
1.09 in
Specifications Bushing Thread Size Metric
M12 X 0.75
Specifications Color
Black | Gray
Specifications Durometer
50
Specifications Enclosure Protection
IP68 (Under Normal Conditions)
Specifications External Pressure Range
15 psi
Specifications Internal Pressure Range
15 psi
Specifications Material
Silicone Rubber Conforms to A-A-59588, GR 62
Specifications Maximum Lever Diameter
0.219 in
Specifications Mounting Nut
Corrosion Resistant - Nickel Plated Brass
Specifications Resistant To
Fungus | Most Acids and Lubricating Oils | Ozone | Salt Spray | Sunlight | Weather
Specifications Temperature Range
-93 to +400 ºF
Specifications Thread Type
Metric
