ZeRAK Aluminum Double Entry Rackmount Case
ZeRAK Aluminum Double Entry Rackmount Case
SKU:19I-6338d2
Get unmatched protection for your electronic equipment with the ZeRAK Aluminum Double Entry Rackmount Case. Reliable, durable, and customizable for your needs.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
ZeRAK Aluminum Double Entry Rackmount Case
$799.99
Quantity: 1
Claim Your Seller Account
ZeRAK Aluminum Double Entry Rackmount Case
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

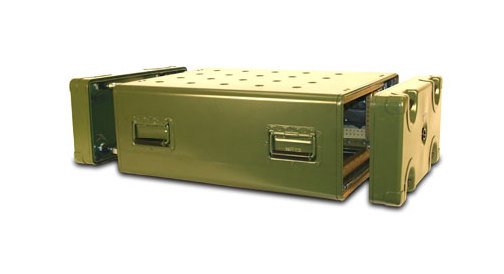

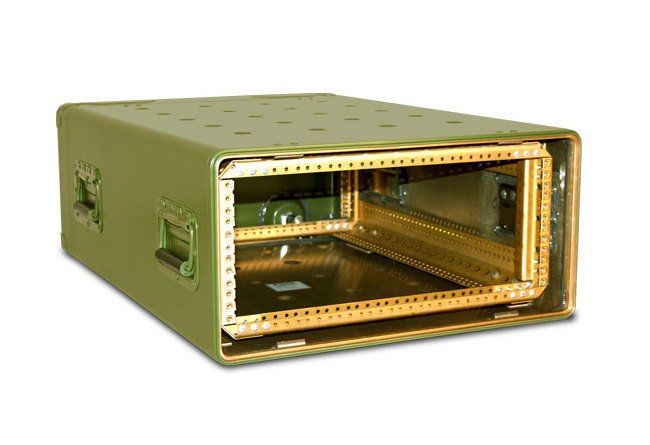

The ZeRAK™ Aluminum Double Entry Rackmount Case provides superior protection and durability for sensitive electronic equipment. With a minimum of 40G protection and compliance with MIL-Spec standards, this case is designed to withstand extreme environmental conditions including temperature variations, altitude, and exposure to elements like rain, sleet, snow, sand, and dust. Featuring a lightweight yet robust aluminum frame, integral stacking design, and customizable options, the ZeRAK™ ensures secure transportation and easy accessibility for your electronic components.
Product Specifications
Additional Information Additional Information
Lightweight-32.6 lbs (4U model). Small Footprint-the combination of small footprint and light weight equate to lower shipping costs.Airtight, watertight MIL-Spec case.8 week delivery time.Recessed metal handles with rubberized grip.21 standard configurations from 4U-10U sizes, and Body Depths of 24", 27", 30" and 33", and Rack Frame Depths of 21", 24", 27" and 30".Removable 3" and 5" covers (front and rear) allow full accessibility while stacked.Integral stacking design for vertical and 90° stacking.Reinforced aluminum corner caps maximize protection.High-strength aluminum frame accommodates ANSI, EIA, metric, & custom equipment mounting configurations.Grounding strap.Like most ZERO products, the ZeRAK⢠can be customized to meet specific requirements.
Dimensions Center Section Depth
29.56 in | 751 mm
Dimensions Eia Units
10.62 in | 270 mm
Dimensions Height Less Dimples
13.77 in | 350 mm

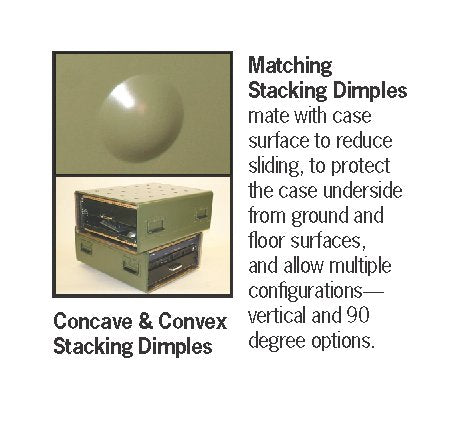

Dimensions Height With Dimples
14.15 in | 356.9 mm
Dimensions Rack Frame Depth
27 in | 686 mm
Dimensions Width
20.95 in | 532 mm
Note Note
Container exterior and covers (inside and out) are painted and textured. The inside center section and frame are not painted, but have a Chem Film finish.Call to verify the application does not exceed the load carrying capacity of the lifting rings or case.Technical information is known to be correct at the time of publication.
Note Stacking Note
500 lbs (226.796 kg) standard. For higher weights, call to verify weight and support needed.
Options Finish Custom
Other colors and finishes available upon request. Any commercial or military specification can be met in our completely equipped and staffed paint facility. In addition to supplying any color per FED-STD-595, RAL and PMS, ZERO can match any color.
Options Finish Mil Spec Options
A = No Finish. | B = Wash Prime and Epoxy Primer. | C =Light Gray, Semi-Gloss = Same as B plus Paint Polyurethane, Color No. 26307. | D = Light Gray, Gloss = Same as B plus Paint Polyurethane. Color No. 16307. | E = Yellow, Gloss = Wash Prime per DOD-P-15328 and Epoxy Primer per MIL-DTL-53022 plus Paint Polyurethane. Color No. 13538. | F = Strata Blue, Gloss = Same as B plus Paint Polyurethane, Color No. 15045. | G = Green, Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24300. | H = Olive Drab. Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24084. | J = Olive Drab, Lusterless = Same as B plus Paint Polyurethane, Color No. 34088. | K = 383 Green, Camouflage = Same as B plus Paint Aliphatic Polyurethane Coating "CARC" per MIL-DTL-53039, Color No. 34094. | S = Special Order - Please Specify. | UA = Chemical Film per MIL-DTL-5541. | W = Chemical Film per MIL-DTL-5541. Epoxy Primer per MIL-DTL-53022, or Water-base Epoxy Primer per MIL-DTL-53030. Paint with White Polyurethane Coating per MIL-PRF-85285 or Epoxy Coating per MIL-PRF-22750.
Options Finish Powder Coat Options Recommended
BK = Black 27038 | DB = Dark Blue 25045 | DS = Desert Sand 20372 | FED-STD-595 for reference | FG = Forest Green 24079 | GR = Gray 26307 | MB = Medium Blue 25190 | NG = NATO Green RAL6014 | OD = Olive Drab 24097 | OR = Orange 21400 | RD = Red 21105 | WH = White 27925 | YW = Yellow 23538
Options Front Cover Options Inside Depth
3-3 in/76 mm | 5-5 in/127 mm
Options Other Options

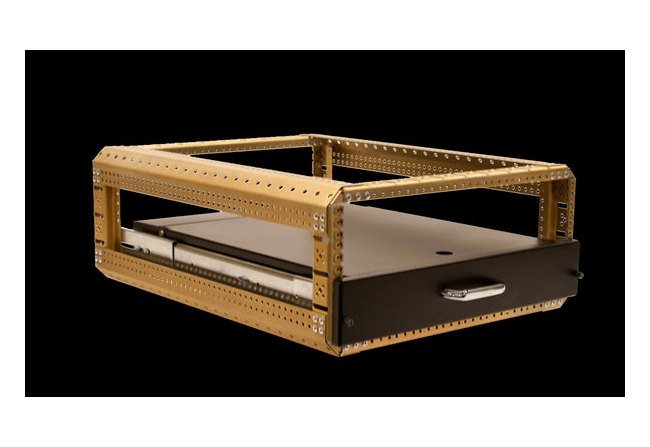

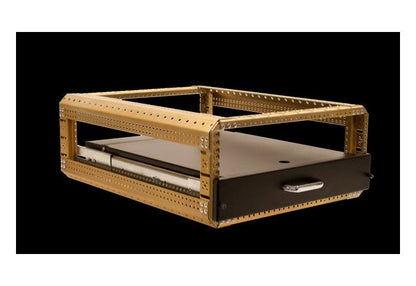

2-2U Sliding Drawer | 3-3U Sliding Drawer | 4-4U Sliding Drawer | B-Card Holder | F-Coupling Straps (Requires PâLifting Rings) | G-Equipment Angles (Qty 2) | H-Fixed Shelf | J-Humidity Indicator | M-Intermediate Rails (Qty 2) | P-Lifting Rings (Qty 4) | S-Rack Slides (1 Pair) | U-Sliding Shelf | X-Storage Pouch in Rear Cover
Options Rack Holes Eia Pattern Options
1 = #10;-32 | 5 = M5 | 6 = M6
Options Rear Cover Options Inside Depth
3-3 in/76 mm | 5-5 in/127 mm
Options Shock Mount Options For Equipment Weight
1-41 to 80 lbs (18.6 to 36.29 kg) | 2-0 to 40 lbs (18.6 kg) MIL-STD-810 & MIL-PRF-28800 | 3-0 to 40 lbs (18.6 kg) MIL-PRF-28800
Options Valve Options
A = Auto Pressure Valve | M = Manual Relief Valve | N = None Required
Specifications Case Material Type
Aluminum 0.063 in
Specifications Eia U Size
6U

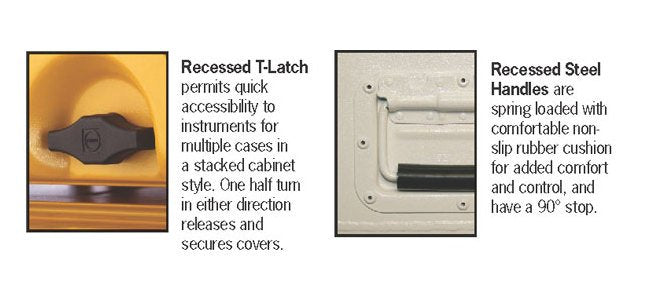

Specifications Handle Type
Recessed Steel Handles are spring loaded with comfortable non-slip rubber cushion for added comfort and control, and have a 90° stop.
Specifications Latch Type
Recessed T-Latch permits quick accessibility to instruments for multiple cases in a stacked cabinet style. One half turn in either direction releases and secures covers.
Specifications Made In
USA
Specifications Standard Availability
8 Weeks
Specifications Weight With 3 Inch Covers
37 lb | 17 kg
