Zero Halogen Low Smoke Liquid-Tight Flexible Metal Conduit
Zero Halogen Low Smoke Liquid-Tight Flexible Metal Conduit
SKU:LIQ-cfed54
Premium Zero Halogen-Low Smoke-Liquid-Tight Conduit, UL Listed, Flexible & Durable
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Zero Halogen Low Smoke Liquid-Tight Flexible Metal Conduit
$249.99
Quantity: 1
Claim Your Seller Account
Zero Halogen Low Smoke Liquid-Tight Flexible Metal Conduit
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

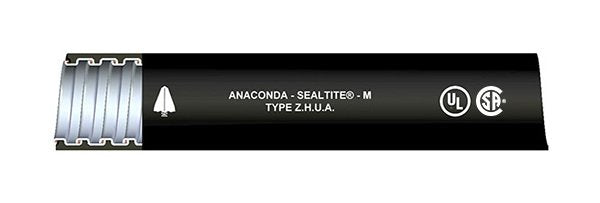

The Type ZHUA Zero Halogen-Low Smoke-Low Flame Spread Liquid-Tight Flexible Metal Conduit (LFMC) is a top-of-the-line solution for wiring applications. With a flexible and liquid-tight raceway, this conduit is constructed of hot-dipped zinc galvanized steel core ensuring durability. The conduit features a LOW SMOKE AND ZERO HALOGEN TPU jacket, making it flame retardant and sunlight resistant. UL Listed and IP 67 rated, it comes with an integral bonding wire for added safety. Suitable for a wide range of temperatures and approved for hazardous locations, this conduit is ideal for both exposed and concealed installations.
Product Specifications
Application 0
For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)
Installation 0

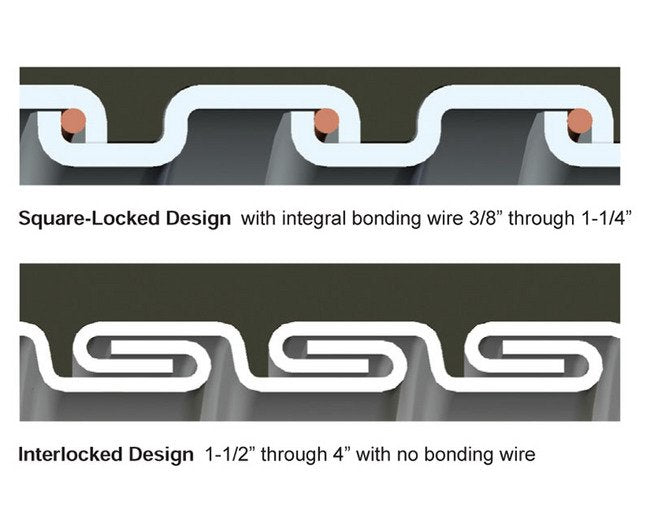

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.
Meets Or Exceeds The Following Standards 0
Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Weight Per 100 Ft
44 lbs | 19.96 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
6703-45-00 | 88121 | LSZH | ZHLA-12
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
5.0 in | 127 mm
Specifications Inside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
100 ft | 30.48 m
Specifications Note
Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Standard Carton
Specifications Type
ZHUA
