Zero Halogen-Low Smoke-Low Flame Spread LFMC Flexible Conduit

Name: Zero Halogen-Low Smoke-Low Flame Spread LFMC Flexible Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-b38ae5
Price: 899.99 USD
Availability: OutOfStock

SKU:LIQ-b38ae5

Premium LFMC Flexible Conduit with Zero Halogen, Low Smoke, Low Flame Spread for superior safety and performance.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

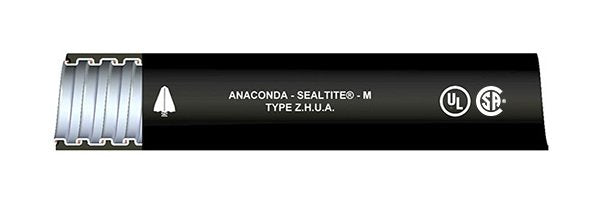

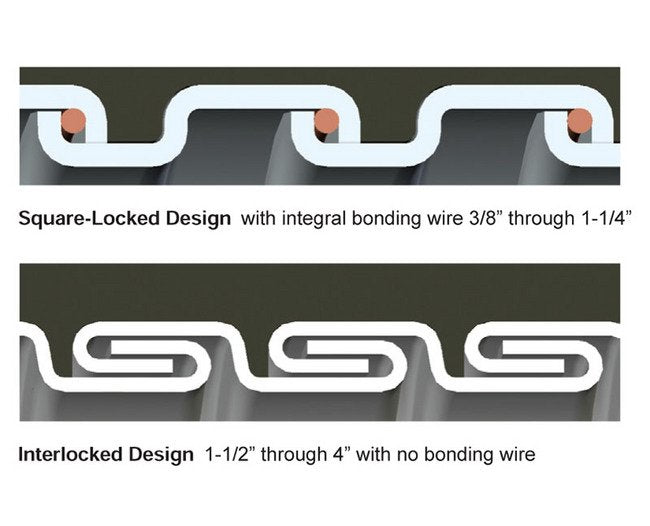

The Type ZHUA LFMC Flexible Conduit provides a premium solution for wiring applications requiring flexibility, liquid-tight protection, and enhanced safety features. With a Zero Halogen jacket and integral bonding wire, this conduit offers superior protection with minimal smoke and flame spread. It is constructed from interlocked hot-dipped zinc galvanized steel core and features a TPU jacket that is sunlight-resistant, flame-retardant, and zero halogen. UL listed and IP 67 rated with approved end connectors, this conduit is suitable for various environments, including hazardous locations. It meets stringent industry standards such as ASTM E162 for Flame Spread Index and ASTM E662 for Smoke Density, ensuring reliable performance and safety.

Product Specifications

Application 0

For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.

Meets Or Exceeds The Following Standards 0

Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Weight Per 100 Ft

44 lbs | 19.96 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

6703-60-00 | 88125 | LSZH | ZHLA-12

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Bend Radius

5.0 in | 127 mm

Specifications Inside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

1000 ft | 304.8 m

Specifications Note

Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Standard Reels

Specifications Type

ZHUA

Zero Halogen-Low Smoke-Low Flame Spread LFMC Flexible Conduit
