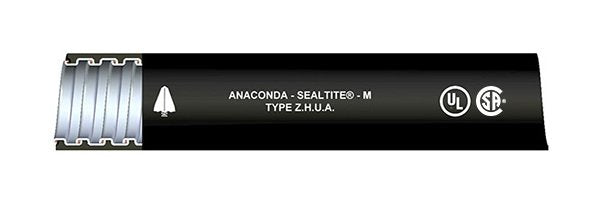

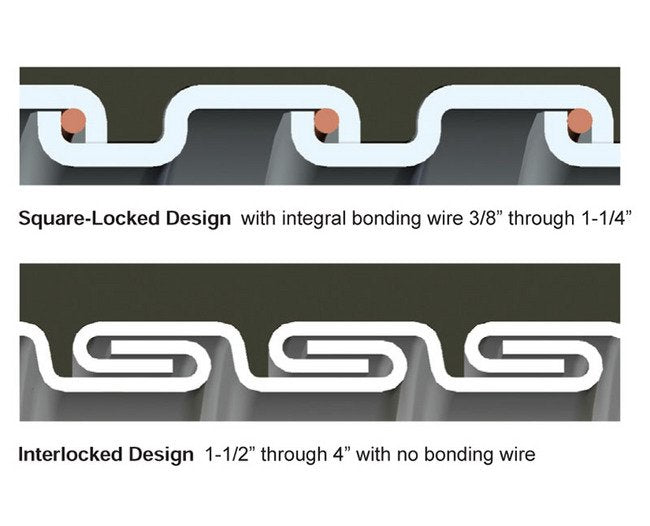

The Zero Halogen-Low Smoke-Low Flame Spread Liquid-Tight Flexible Metal Conduit (Type ZHUA) offers a flexible and durable solution for wiring applications. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a flame-retardant, low smoke, and zero halogen TPU jacket, this conduit ensures safety and reliability. With UL Listing, IP 67 rating, and a wide temperature range, it is suitable for various environments and applications. This conduit is equipped with an integral bonding wire, standard liquid-tight connectors for easy installation, and meets multiple industry standards for flame spread, smoke density, and toxic gas generation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.
Meets Or Exceeds The Following Standards 0
Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Weight Per 100 Ft
148 lbs | 67.13 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
6707-24-00 | 88162 | LSZH | ZHLA-16
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
7.0 in | 177.8 mm
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
50 ft | 15.24 m
Specifications Note
Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Standard Carton
Specifications Type
ZHUA
