Zero Scout 19 Inch Rackmount Double Entry Rotomold Cases
Zero Scout 19 Inch Rackmount Double Entry Rotomold Cases
SKU:19I-dc7bc1
Protect your sensitive rackmount equipment with Zero Scout™ 19 Inch Rotomold Cases - unmatched security in any condition.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Zero Scout 19 Inch Rackmount Double Entry Rotomold Cases
$699.99
Quantity: 1
Claim Your Seller Account
Zero Scout 19 Inch Rackmount Double Entry Rotomold Cases
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

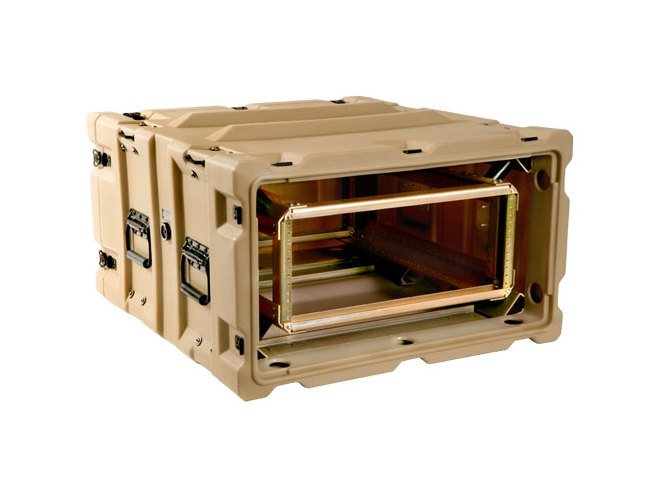

The Zero Scout™ 19 Inch Rackmount Double Entry Rotomold Cases are meticulously engineered to provide unparalleled protection for sensitive E.I.A. 19" rackmount equipment and instrumentation. These rotomolded cases feature uniform wall thickness, stress-free shells, and a watertight seal for ultimate security. With a wide range of customizable options and colors, these cases meet rigorous industry standards, including resistance to extreme conditions like temperature variations, rain, snow, and chemicals. Lightweight yet robust, these Scout™ cases are portable, stackable, and versatile, offering the flexibility needed for diverse applications.
Product Specifications
Additional Information Additional Information
Scout⢠19" Rackmount cases meet the rigors of virtually all conditions including extreme altitude, rain, sleet, snow, sand, dust and temperatures.Strong, yet lighter polyethylene constructionShock-mounted 19" rackFlexibility - customize to needsPortable, stackable, versatileVariety of standard and custom finishes and color
Features Features
Case Shells made from rotationally molded polyethylene plasticUniform wall thicknessCompounded color impregnated directly into durable polyethylene plastic shellsNearly stress-free shellsIntegrally molded tongue and groove closure for a watertight sealExtra rugged corner constructionGasketed construction with integral tongue and groove closure interlocks top and bottom for environmental protectionRecessed hardware for added protectionWide range of colors available using FED-STD-595 guidelinesSpring-loaded, rattle proof handles with 90° stopsCam action, positive locking latchesInterlocking ribs, top and bottom allow for stacking of casesResists most chemicals and solvents
Note Note
Lifting Rings: Verify the application does not exceed the load carrying capacity of the lifting rings or case.Stacking: Call to verify weight and support.Shock Mounts: Equipment loads over 80 lbs.
Specifications Case Height F
17.75 in | 451 mm
Specifications Colors
B - Black 27040 | Custom* | DB - Dark Blue 25102 | DS - Desert Sand 33446 | FG - Forest Green 24052 | G - Gray 26270 | GG - Dark Green 34094 | M - Maroon PMS 202 | MB - Medium Blue 25190 | N - Natural | NG - NATO Green RAL6014 | O - Orange 12197 | OD - Olive Drab 24097 | R - Red 21105 | W - White 27925 | Y - Yellow 23785
Specifications Eia U Size
6U
Specifications Environment Options
HI = Humidity Indicator | OO = None Required | PH = Pressure Valve, Humidity Indicator | PV = Pressure Valve | WT = Watertight, Pressure Valve | WV = Watertight, Humidity Indicator, Pressure Valve
Specifications Hardware
BH = Black Metal Handle and Hardware | BL = Black Metal Handle, Hardware, Locking Hasp | LL = Zinc Chromate Handle and Hardware, Locking Hasp | LS = Stainless Steel Handle and Hardware, Locking Hasp | OO = Standard: Zinc Chromate Handle and Hardware | P1 = Plastic Black Handle, Zinc Hardware, Locking Hasp | P2 = Plastic Black Handle, Stainless Steel Hardware, Locking Hasp | P3 = Plastic Black Handle, Black Hardware, Locking Hasp | PB = Plastic Black Handle, Black Hardware | PO = Plastic Black Handle, Zinc Hardware | PS = Plastic Black Handle, Stainless Steel Hardware | SS = Stainless Steel Handle and Hardware
Specifications Inside Body Depth
24 in | 610 mm
Specifications Made In
USA
Specifications Material
Polyethylene Plastic, Rotationally Molded Shells
Specifications Other Options
CH = Card Holder | CS = Coupling Straps | None Required | SP = Storage Pouch | Z1 = Card Holder, Storage Pouch | Z6 = Coupling Straps, Storage Pouch
Specifications Outside Cover Depth
9.00 in | 229 mm
Specifications Rack Depth
24 in | 610 mm
Specifications Rack Holes
M5 = M5 Metric Tapped | M6 = M6 Metric Tapped | OO = Standard EIA | SQ = Square
Specifications Shelves And Drawers
EA = Equipment Angles | FS = Fixed Shelf | IR = Intermediate Rails | KT = Keyboard Required | None Required | RS = Rack Slides | SD = Sliding Drawer | SF = Sliding Shelf
Specifications Shock Mount Equipment Weight
20 to 49 lb | 50 to 80 lb | 9.1 to 22.2 kg | 22.7 to 36.3 kg
Specifications Standard Availability
8 Weeks
Specifications Sway Space
±
Specifications Volume
9.90 ft³ | 0.28 m³
Specifications Weight
52.00 lb | 23.60 kg
