Zinc/Clear Carbon Steel USS Flat Washer 3/8 in
Zinc/Clear Carbon Steel USS Flat Washer 3/8 in
SKU:BAL-249995
Durable Zinc/Clear Carbon Steel USS Flat Washer, 3/8 in, corrosion-resistant for heavy-duty applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Zinc/Clear Carbon Steel USS Flat Washer 3/8 in
$12.99
Quantity: 1
Claim Your Seller Account
Zinc/Clear Carbon Steel USS Flat Washer 3/8 in
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Zinc/Clear Carbon Steel USS Flat Washer in the wide series is a high-quality washer designed for heavy-duty applications. Made from durable carbon steel, it provides excellent support and load distribution. The zinc/clear finish offers corrosion resistance, extending the lifespan of the washer. With a size of 3/8 inch and a weight of 1.49 lb per 100 pieces, this washer is ideal for construction, machinery, and industrial projects.
Product Specifications
Design Design

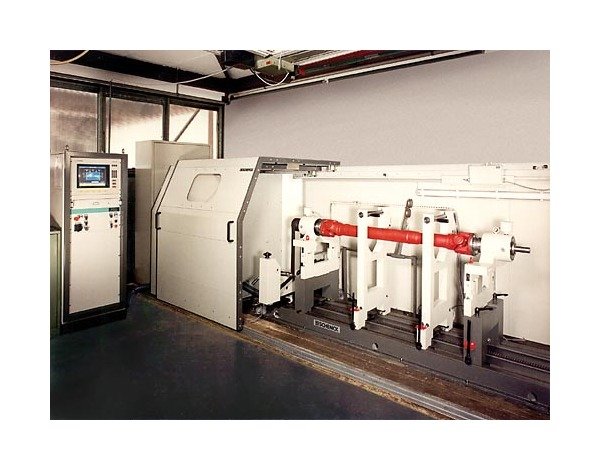

Hard-bearing special balancing machine with horizontal rotor axis and semi-automatic operation.The machine consists basically of: machine base, support pedestals with spindle bearings and vibration sensors, belt-drive with drive motor, control cabinet with measuring unit and drive controls, safety brackets and protective enclosure of the class C according to ISO 7475.

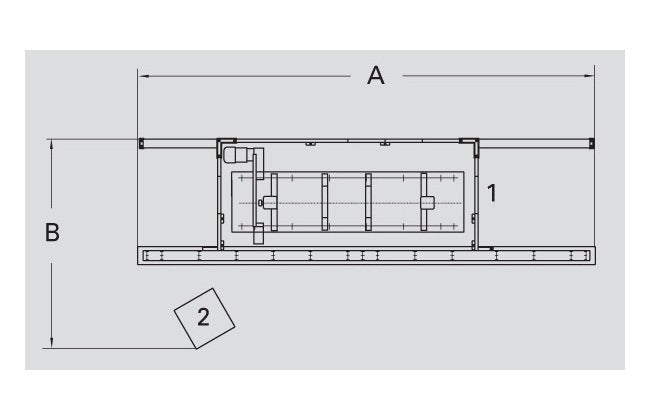

Machine Machine Depth B
2400 mm
Machine Machine Height C
2300 mm
Machine Machine Width A
5500 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Options Center Pedestal Order Number For 2 Piece Shafts
R0150204.01
Options Drill Correction Order Number
R0150206.01
Options Measuring Unit Cab 920 Order Number
R0150101.01
Options Options
Belt Drive | Center Pedestal for 2-Piece Shafts | Drill Correction | Measuring Unit (CAB 920) | Protective Enclosure | Report Printer | Roller-Bearing Carriages for Rotors with their own Journals | Safety Devices | Software Options | Spindle Adapter - On Request | Spindle Bearings for Drive Shafts | Welding Correction
Options Report Printer Order Number
R0150102.01
Options Roller Bearing Carriages Order Number For Rotors With Th
R0150205.01
Options Software Option Order Number
R0150103.01
Options Welding Correction Order Number
R0150207.01
Range Of Application Range Of Application

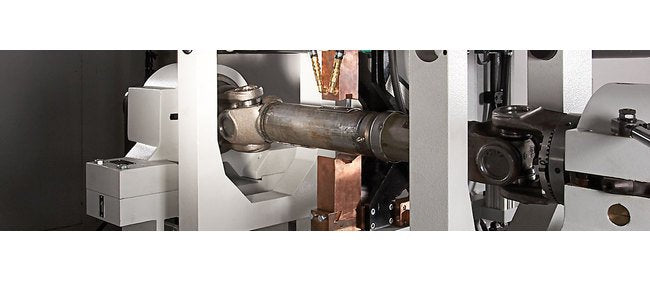

Horizontal, hard-bearing balancing machines series HGW are designed especially for low- and high-speed balancing of drive shafts in overhaul, repair operations and small production lots. A modular design provides flexibility to change or add components for other balancing tasks such as balancing electric armatures, drums, etc.
Rotor Diameter
1600 mm
Rotor Length
2200 mm
Rotor Maximum Rotor Weight
450 kg
Technical Data Air Pressure
600 kPa
Technical Data Balancing Speed
100 to 5000 min-1
Technical Data Basic Machine Order Number
R0150200.01
Technical Data Brands
SCHENCK
Technical Data Drive Power
4 kW
Technical Data Minimum Achievable Residual Unbalance Per Plane
0.5 gmm/kg
Technical Data Sound Pressure Level With Class C Protection Lpa
60 to 70 dBA
