Zinc Plated Steel Closed Body Turnbuckle for Architectural Cable Railings

Name: Zinc Plated Steel Closed Body Turnbuckle for Architectural Cable Railings
Brand: Lexco Cable Manufacturing
SKU: ARC-5d9e18
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-5d9e18

Precision-engineered Zinc Plated Steel Turnbuckle for 9/32" wire rope. Ideal for architectural cable railings.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

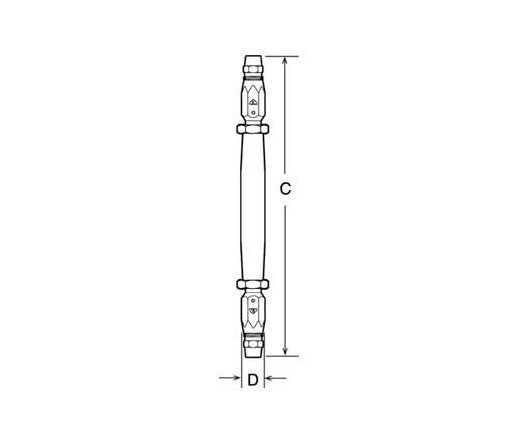

The Closed Body Double Socket Turnbuckle from our Machined Series is precision-engineered for secure installation onto 9/32" wire rope or aircraft cable. Crafted from durable Zinc Plated Steel, this turnbuckle boasts a C Min of 12-7/8", Dim. D of 1", and a Take-up of 4-9/16". With an EIPS Breaking Strength of 8,000#, it ensures reliable performance for linear applications. Compliant with industry standards, this turnbuckle provides exceptional strength and resilience, meeting the stringent requirements of institutional and government buyers.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

Specifications C Min

12-7/8 "

Specifications Dim D

1 "

Specifications Eips Breaking Strength

8,000#

Specifications Material Finish

Zinc Plated Steel

Specifications Rope Size

9/32 "

Specifications Take Up

4-9/16 "

CAGE

0T9L4

NAICS

332510

PSC

4030
