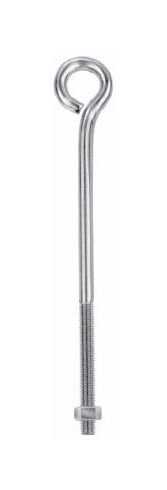

Zinc Plated Turned Eye Bolts Machine Thread - 1/4"-20 x 4"

Name: Zinc Plated Turned Eye Bolts Machine Thread - 1/4"-20 x 4"
Brand: Lexco Cable Manufacturing
SKU: WIR-b68a14
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-b68a14

High-quality Zinc Plated Turned Eye Bolts with 1/4"-20 threads, 4" shank length, and 5" overall length. Made in USA by Chicago Hardware & Fixture Company.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Manufactured by Chicago Hardware & Fixture Company in the USA, these Zinc Plated Turned Eye Bolts feature low carbon cold drawn steel wire with NC rolled machine threads. Each bolt includes one hex nut unassembled for easy installation. With a standard zinc plated finish for rust prevention, these bolts are also customizable to meet specific requirements. Ideal for cable assembly attachment, these turned eye bolts offer a 1/2" inner diameter eye, a 4" shank length, and a 5" overall length. Each pack includes 50 pieces for stock # A-1 through D-1, and 10 pieces for stock # E-1 through J-5.

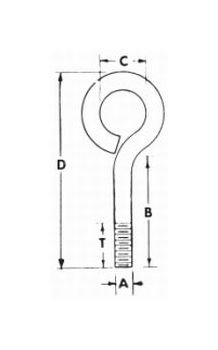

Product Specifications

Specifications Id Eye C

1/2"

Specifications Oal D

Specifications Shank Length B

Specifications Stock

E-7

Specifications Thread Dia A

1/4"-20

Specifications Thread Length T

2-1/2" "

Specifications Wll Lbs

Specifications Wt Per 100 Pcs Lbs

7.5

CAGE

0T9L4

NAICS

332722

PSC

5306
