Zinc Plated Turned Eye Bolts Welded - Machine Threads for Secure Cable Attachments

Name: Zinc Plated Turned Eye Bolts Welded - Machine Threads for Secure Cable Attachments
Brand: Lexco Cable Manufacturing
SKU: WIR-adb552
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-adb552

Secure and durable zinc plated turned eye bolts welded for strong cable attachments.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

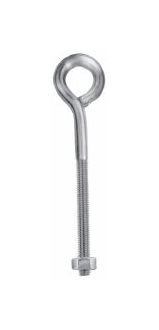

Enhance cable assemblies with these zinc plated turned eye bolts welded to ensure secure and reliable attachment. Featuring resistance-welded closed eyes, these bolts are durable and dependable. With a 3/8"-16 thread diameter, 4" shank length, and a 3/4" inner diameter eye, they offer a Working Load Limit (WLL) of 400 lbs. Ideal for both consumer and institutional use, these bolts meet high standards in strength and durability.

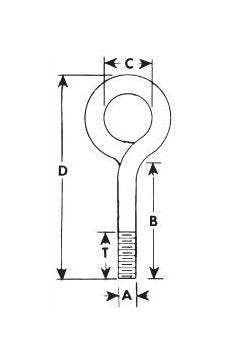

Product Specifications

Specifications Id Eye C

3/4"

Specifications Oal D

5-1/2"

Specifications Shank Length B

Specifications Stock

G-6W

Specifications Thread Diameter A

3/8"-16

Specifications Thread Length T

2-1/2" "

Specifications Wll Lbs

400

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332722

PSC

5306
