Zinc Plated Turned Eye Bolts Welded with Machine Threads 3/8"-16

Name: Zinc Plated Turned Eye Bolts Welded with Machine Threads 3/8"-16
Brand: Lexco Cable Manufacturing
SKU: WIR-0af4e0
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-0af4e0

High-quality Zinc Plated Turned Eye Bolts Welded with Machine Threads 3/8"-16 for secure and reliable cable assemblies.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

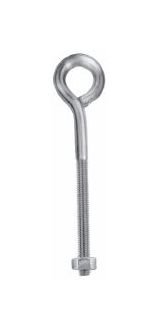

The Zinc Plated Turned Eye Bolts Welded with Machine Threads 3/8"-16 are durable and reliable wire rope hardware essential for various industrial applications. Made in the USA by Chicago Hardware & Fixture Company, these eye bolts feature a resistance-welded closed eye for enhanced strength and security. With a shank length of 2-1/2" and a Working Load Limit (WLL) of 400 lbs, these bolts provide a safe and sturdy attachment point. Ideal for cable assemblies, these bolts meet stringent quality standards and ensure long-term performance.

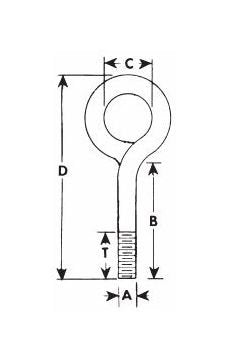

Product Specifications

Specifications Id Eye C

3/4"

Specifications Oal D

Specifications Shank Length B

2-1/2"

Specifications Stock

G-3W

Specifications Thread Diameter A

3/8"-16

Specifications Thread Length T

1-1/2" "

Specifications Wll Lbs

400

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332722

PSC

5306

Zinc Plated Turned Eye Bolts Welded with Machine Threads 3/8"-16
